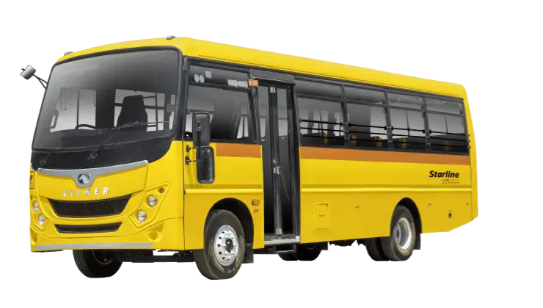

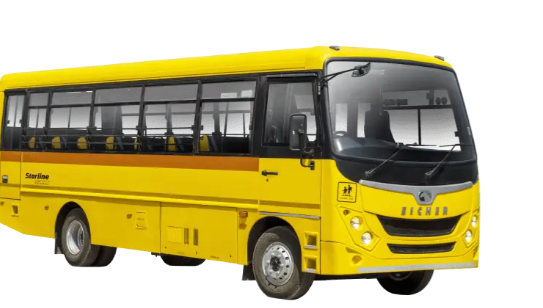

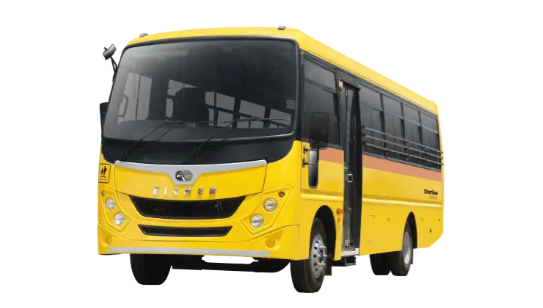

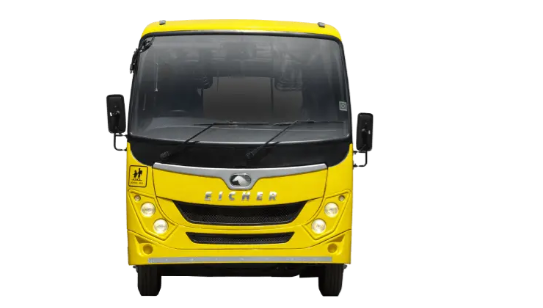

Eicher Starline Next 2070 E AC – Diesel School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2070 E AC |
|
Seating Capacity |
25+CD+D (2x2), 30+CD+D (3x2) |
|
Wheelbase, mm |
3515 |
|
Overall Length, mm |
6855 |
|
Overall Width, mm |
2164 |
|
Overall Height, mm |
2975 |
|
Front Overhang, mm |
1200 |
|
Rear Overhang, mm |
2140 |
|
Turning Circle Diameter, m |
13.1 |
|
Engine |
E474 |
|
Displacement, cc |
2960 |
|
Power |
105 kW @ 3200 RPM |
|
Torque |
400 Nm @ 1200–2500 RPM |
|
Clutch Diameter, mm |
310 |
|
Transmission |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Reverse) |
|
GVW, kg |
7500 |
|
Chassis Frame |
Domex® 650 |
|
Chassis C Frame Dimensions, mm |
200 x 65 x 5 |
|
Fuel Tank Capacity, L |
100 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
7.50 x 16 -16 PR |
|
Suspension - Front |
Semi elliptic |
|
Suspension - Rear |
Semi elliptic |
|
Steering |
Power steering |
|
Battery |
12 V, 130 Ah |
|
Alternator |
2 x 110 A |
|
Floor Type |
Button type Vinyl |
|
DEF Tank Capacity, L |
19 |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat belts |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
