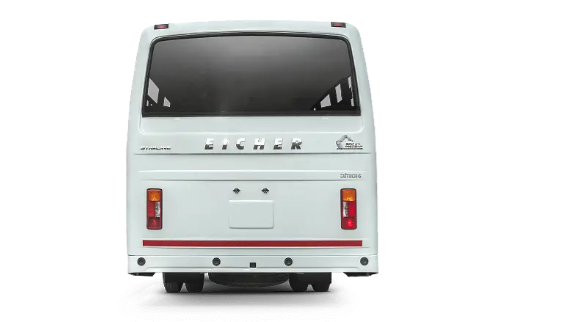

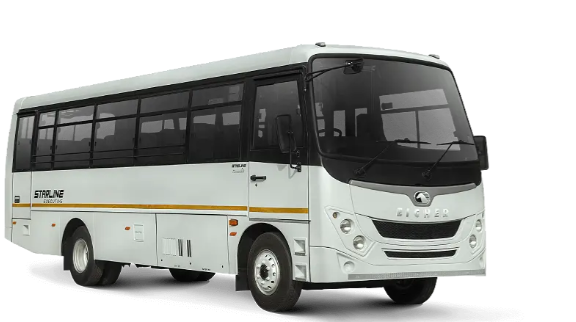

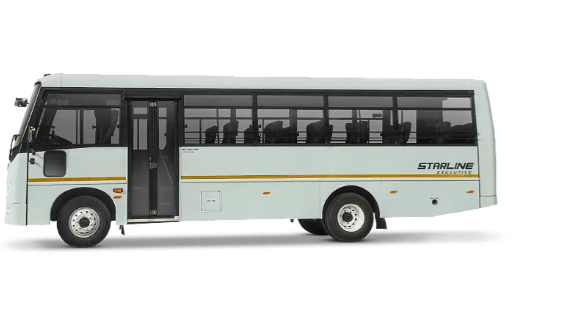

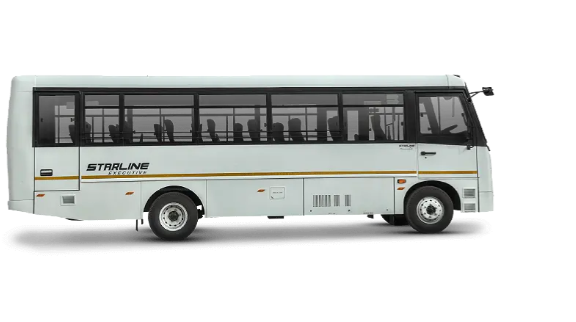

Eicher Starline Next 2050 C Diesel – Staff Bus Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2050 C |
|
Seating Capacity |
15+1+D HHR |
|
Wheelbase, mm |
2850 |
|
Overall Length, mm |
5720 |
|
Overall Width, mm |
2164 |
|
Overall Height, mm |
2765 |
|
Front Overhang, mm |
1200 |
|
Rear Overhang, mm |
1670 |
|
Turning Circle Diameter, m |
11.2 |
|
Engine Make |
E366 |
|
Displacement, cc |
1999 |
|
Power |
75 kW @ 3200 Rpm |
|
Torque |
285 Nm @ 1250 – 2500 Rpm |
|
Clutch, mm |
280 |
|
Transmission Make |
ET30S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW, t |
5.6 |
|
Chassis Type |
BSK 46 |
|
Chassis dimension, mm |
180x60x5 |
|
Fuel Tank Capacity, L |
60 |
|
Brakes |
Hydraulic with Disc |
|
Tyres |
7.50 x 16 -16 PR |
|
Suspension Front |
Semi elliptic with ARB |
|
Suspension Rear |
Semi elliptic with ARB |
|
Steering |
Power steering |
|
Battery |
12V 130Ah |
|
Alternator |
110A |
|
Floor Type |
Button vinyl |
|
DEF Tank Capacity, L |
19 |
|
Fuel Type |
Diesel |
|
Application |
Staff Buses |
Components & Features
|
Specification |
Details |
|
Suspension Feature |
Silent suspension |
|
Tyre Feature |
Radial tubeless tyres |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
