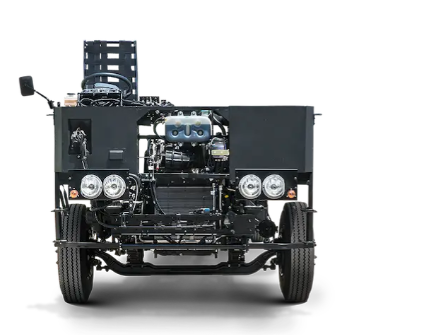

Eicher Starline 2075 H Diesel – Staff Bus Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Starline 2075 H Chassis |
|
Wheelbase |
4320 mm |
|
Overall Length |
7811 mm |
|
Overall Width |
1990 mm |
|
Overall Height |
2480 mm |
|
Ground Clearance |
187 mm |
|
Front Overhang |
1024 mm |
|
Rear Overhang |
2467 mm |
|
Turning Circle Diameter |
16 m |
|
Fuel Tank Capacity |
100 litres |
|
DEF Tank Capacity |
19 litres |
|
Fuel Type |
Diesel |
|
Application |
Staff Buses |

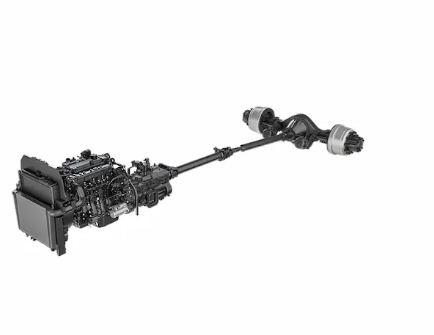

Frame & Drivetrain
|
Specification |
Details |
|

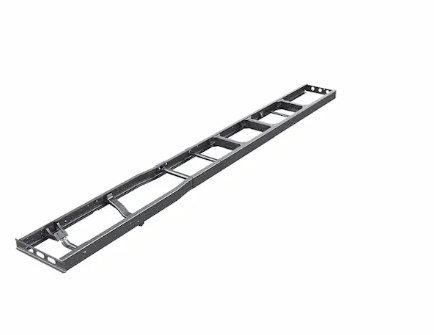

Chassis Type |
Domex 650 |
|
Chassis dimension |
200x75x5 mm |
|
Engine Make |
E474 |
|
Displacement |
2960 cc |
|
Power |
90 kW @ 3200 Rpm |
|
Torque |
350 Nm @ 1200-2500 Rpm |
|
Clutch |
310 mm |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW |
8.2 t |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |

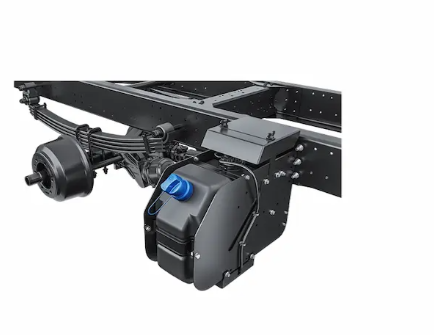

Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi elliptic |
|
Suspension Rear |
Semi elliptic |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
7.50 x 16 -16 PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
