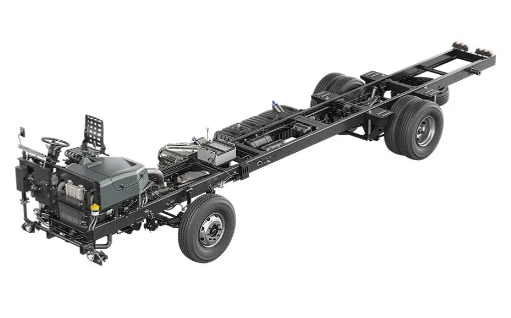

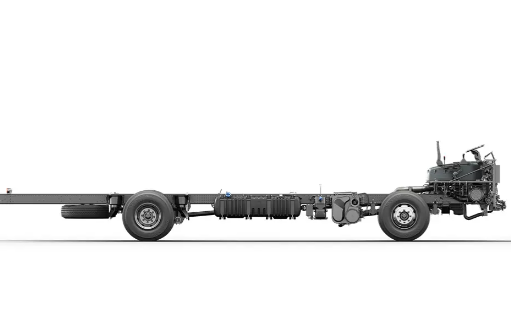

Eicher Skyline Pro Next 6016 N LPO – Diesel Bus Chassis for Staff Applications
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 6016 N LPO |
|
Seating Capacity |
62+D HHR 3X2 |
|
Wheelbase, mm |
5840 |
|
Overall Length, mm |
11714 |
|
Overall Width, mm |
2590 |
|
Overall Height, mm |
3420 |
|
Ground Clearance, mm |
240 |
|
Front Overhang, mm |
2370 |
|
Rear Overhang, mm |
3504 |
|
Turning Circle Diameter, m |
22.7 |
|

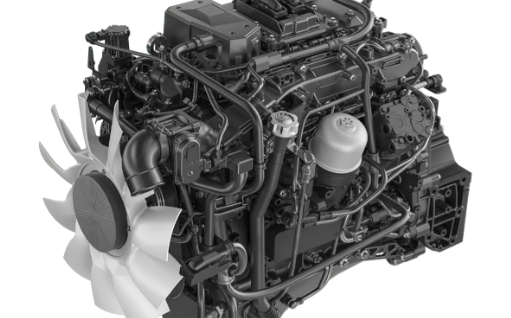

Engine Make |
VEDX5 |
|
Displacement, cc |
5132 |
|
Power |
155 kW @ 2200 RPM |
|
Torque |
825 Nm @ 1200-1600 RPM |
|
Clutch Diameter, mm |
395 |
|

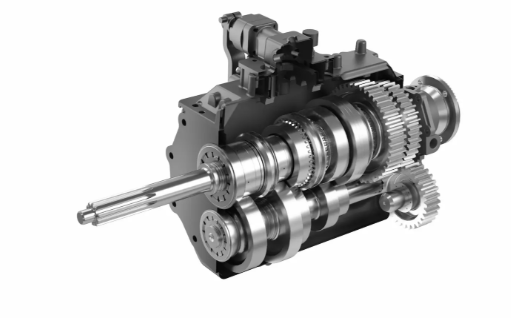

Transmission Make |
ET70S6 |
|
Transmission Type |
Synchromesh 6 Speed + 1 Reverse |
|
GVW, kg |
16200 |
|
Chassis Type |
Domex 650 straight frame |
|
Chassis Dimension, mm |
230 x 76 x 6 |
|
Fuel Tank Capacity, L |
425 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
10R20-16PR |
|
Suspension |
Weveller (Front), Weveller (Rear) |
|
Steering |
Power steering |
|
Battery |
2x12 V, 150 Ah |
|
Alternator |
90 A |
|
DEF Tank Capacity, L |
33 |
|
Application |
Staff Applications |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Cruise Control |
|
Efficiency Feature |
Fuel Coaching |
|
Efficiency Feature |
Mbooster+ |
|
Safety Feature |
Engine Protection System (EPS) |
|
Telematics Feature |
Eicher Live telematics system |
|
Driver Information Feature |
Intelligent Driver Information System (IDIS 2.0) |
|
Fuel System Feature |
Corrosion-free HPDE fuel tank |
|
Safety Feature |
Engine exhaust brake |
|
Brake Feature |
Larger pneumatic brakes |
|
Comfort Feature |
Air conditioning (AC) unit |
