Eicher Skyline Pro Next 6016 M LPO Diesel – Eicher Trucks and Buses Staff Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 6016 M LPO |
|
Seating capacity |
57+D HHR 3X2 |
|
Wheelbase, mm |
5340 |
|
Overall length, mm |
10910 |
|
Overall width, mm |
2590 |
|
Overall height, mm |
3420 |
|
Ground clearance, mm |
240 |
|
Front overhang, mm |
2370 |
|
Rear overhang, mm |
3200 |
|
Turning circle diameter, m |
20.9 |
|

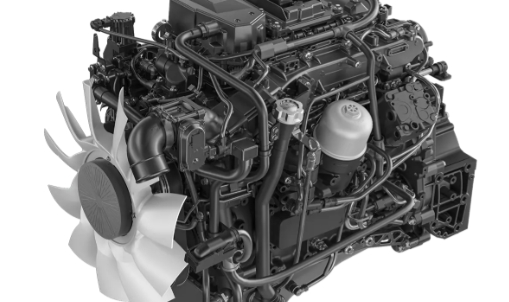

Engine make |
VEDX5 |
|
Displacement, cc |
5132 |
|
Power |
155 kW @ 2200 rpm |
|
Torque |
825 Nm @ 1200-1600 rpm |
|
Clutch diameter, mm |
395 |
|

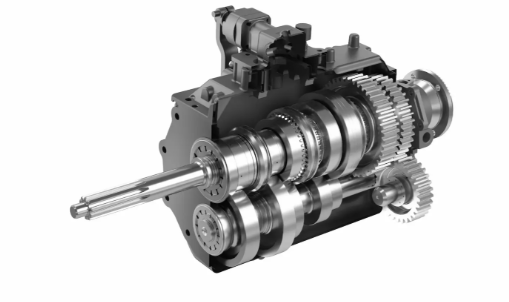

Transmission make |
ET70S6 |
|
Transmission type |
Synchromesh 6 Speed + 1 Rev |
|
GVW, t |
16.2 |
|
Chassis type |
Domex 650 straight frame |
|
Chassis dimension, mm |
230 x 76 x 6 |
|
Fuel tank capacity, L |
250 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
10R20-16PR |
|
Suspension |
Weveller - Front, Weveller - Rear |
|
Steering |
Power steering |
|
Battery |
2x12V, 150Ah |
|
Alternator |
90A |
|
DEF tank capacity, L |
33 |
|
Fuel Type |
Diesel |
|
Application |
Staff Buses |
Components & Features
|
Specification |
Details |
|
Steering Feature |
Cruise Control |
|
Efficiency Feature |
Fuel Coaching |
|

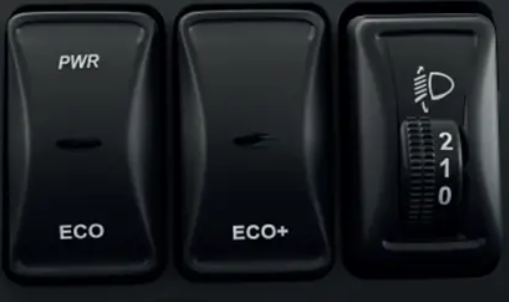

Performance Feature |
Mbooster+ |
|
Engine Feature |
Intelligent Engine Protection System (EPS) |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
