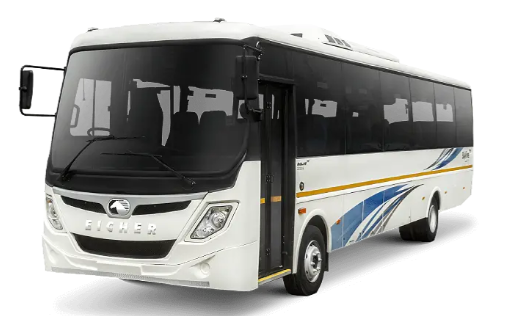

Eicher Skyline Pro Next 3011 L Diesel – Staff Bus Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3011 L |
|
Seating Capacity (3x2) |
55+D |
|
Wheelbase, mm |
5260 |
|
Overall Length, mm |
10403 |
|
Overall Width, mm |
2590 |
|
Overall Height, mm |
3056 |
|
Ground Clearance, mm |
165 |
|
Front Overhang, mm |
2009 |
|
Rear Overhang, mm |
3134 |
|
Turning Circle Diameter, m |
18.5 |
|
Engine Make |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 Rpm |
|
Torque |
500 Nm @ 1200-1800 Rpm |
|
Clutch, mm |
330 |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Rev) |
|
GVW, t |
11.8 |
|
Chassis Type |
Domex® 650 |
|
Chassis dimension, mm |
210 x 76 x 6 |
|
Fuel Tank Capacity, L |
160 |
|
Brakes |
Dual circuit 'S' cam air brakes |
|
Tyres |
235/75 R17.5 - 14PR |
|
Suspension Front |
Parabolic with Front ARB |
|
Suspension Rear |
Parabolic |
|
Steering |
Power steering |
|
Battery |
2 x 12V, 130Ah |
|
Alternator |
110A |
|
Flooring |
Silicon embedded Vinyl |
|
Ad Blue Tank Capacity, L |
27 |
|
Fuel Type |
Diesel |
|
Application |
Staff Buses |
Components & Features
|
Specification |
Details |
|

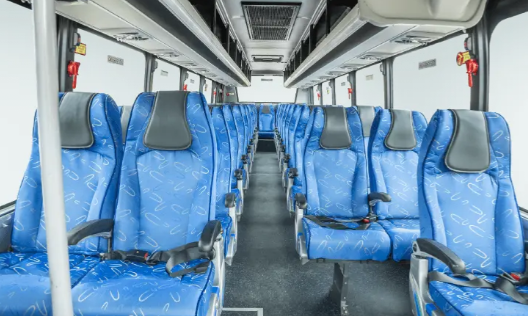

Interior Feature |
Wide gangway |
|
Seating Feature |
Large plush pushback seats |
|
Interior Feature |
LED-lit modular hat-rack |
|
Window Feature |
Pasted tinted glass windows |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
