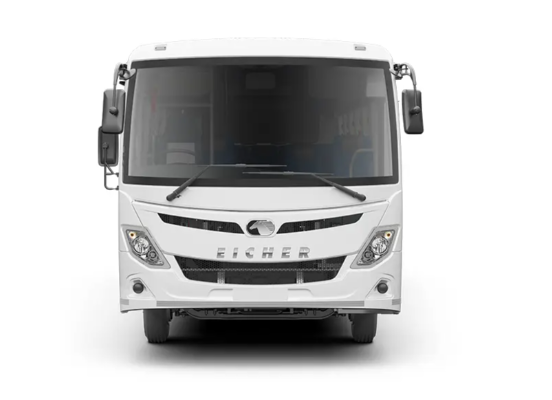

Eicher Skyline Pro Next 3011 K Wider Diesel – Staff Buses by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3011 K Wider |
|
Seating Capacity |
50+D (3x2) |
|
Wheelbase |
4900 mm |
|
Overall Length |
9836 mm |
|
Overall Width |
2590 mm |
|
Overall Height |
2956 mm |
|
Ground Clearance |
185 mm |
|
Front Overhang |
2045 mm |
|
Rear Overhang |
2891 mm |
|
Turning Circle Diameter |
17.3 m |
|
Fuel Tank Capacity |
100 litres |
|
DEF Tank Capacity |
19 litres |
|
Fuel Type |
Diesel |
|
Flooring |
Silicon embedded Vinyl |
|
Application |
Staff Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex® 650 |
|
Chassis dimension |
210 x 76 x 6 mm |
|
Engine Make |
E474 |
|
Displacement |
2960 cc |
|
Power |
105 kW @ 3200 Rpm |
|
Torque |
400 Nm @ 1200-2500 Rpm |
|
Clutch |
310 mm |
|
Transmission Make |
ET40S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW |
11.4 t |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic With Anti-roll bar (ARB) |
|
Suspension Rear |
Parabolic |
|
Brakes |
Air Brakes - Drum with APDA |
|
Steering |
Power steering | Tilt & Telescopic |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5 - 14PR (Tubeless) |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
|
Comfort Feature |
Large comfortable seats |
|
Comfort Feature |
Spacious gangway |
