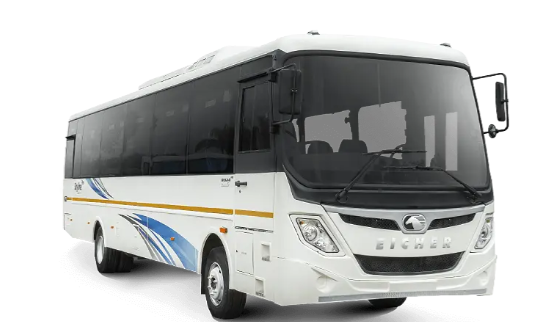

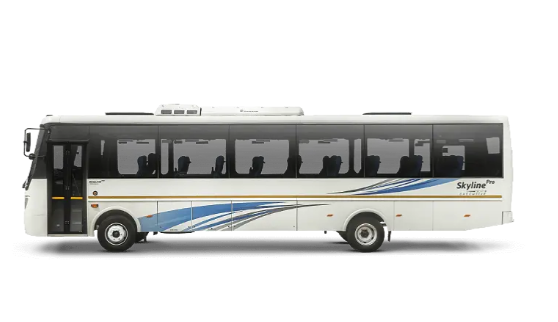

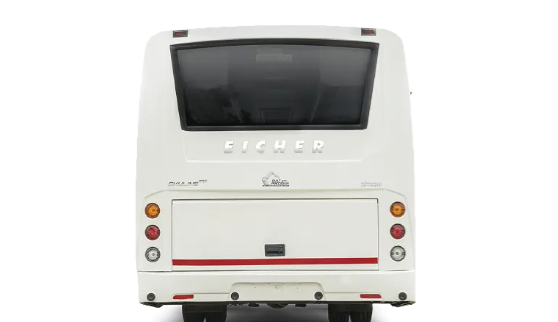

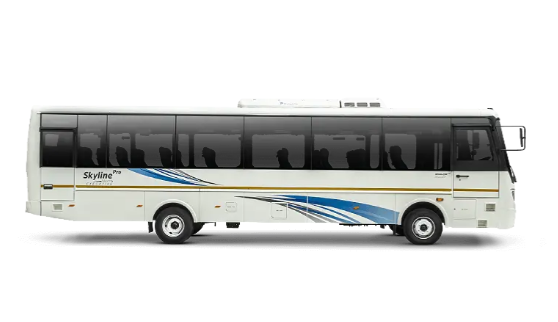

Eicher Skyline Pro Next 3010 L – Diesel Staff Bus Chassis with AC
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3010 L |
|
Seating Capacity |
44+D HHR 2x2, 40+D PB 2X2 |
|
Wheelbase, mm |
5260 |
|
Overall Length, mm |
10439 |
|
Overall Width, mm |
2350 |
|
Overall Height, mm |
2993 |
|
Front Overhang, mm |
2045 |
|
Rear Overhang, mm |
3134 |
|
Turning Circle Diameter, m |
18.5 |
|
Engine Make |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 RPM |
|
Torque |
500 Nm @ 1200 – 1800 RPM |
|
Clutch Diameter, mm |
330 |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Reverse) |
|
GVW |
10.7 t |
|
Chassis Type |
Domex 650 |
|
Chassis C Frame Dimensions, mm |
210 x 76 x 6 |
|
Fuel Tank Capacity, L |
160 |
|
DEF Tank Capacity, L |
27 |
|
Brakes |
Dual Circuit 'S' Cam Full Air Brakes |
|
Tyre Size |
235/75 R17.5-14PR Tubeless |
|
Front Suspension |
Parabolic with ARB |
|
Rear Suspension |
Parabolic |
|
Steering Type |
Power Steering |
|
Battery |
12V 130 Ah |
|
Alternator |
110 A |
|
Flooring |
Silicon Embedded Vinyl |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Efficiency Feature |
MBooster+ |
|
Efficiency Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live Telematics System |
|
Steering Feature |
Adjustable Steering Column |
|
Seating Feature |
Seat Height Adjustment |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat Belts |
|
Safety Feature |
Emergency Exit |
|
Safety Feature |
School Bus Signage and Stop Arm |
|
Safety Feature |
First-Aid Kit |
|
Comfort Feature |
Air Conditioning (AC) Unit |
