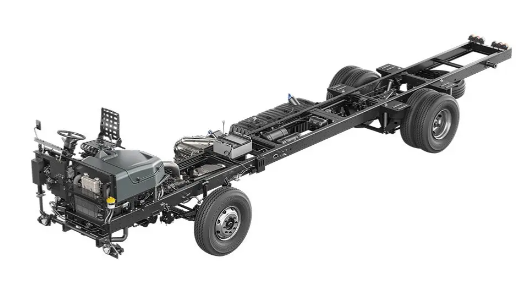

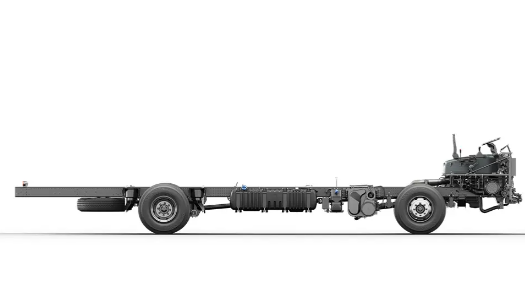

Eicher Skyline Pro Next 3010 L – Diesel School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3010 L |
|
Seating Capacity |
62+D (3x2) |
|
Wheelbase, mm |
5260 |
|
Overall Length, mm |
10439 |
|
Overall Width, mm |
2350 |
|
Overall Height, mm |
2893 |
|
Front Overhang, mm |
2045 |
|
Rear Overhang, mm |
3134 |
|
Turning Circle Diameter, m |
18.5 |
|

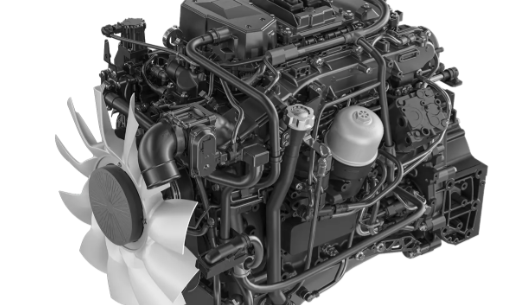

Engine |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 RPM |
|
Torque |
500 Nm @ 1200-1800 RPM |
|
Clutch Diameter, mm |
330 |
|

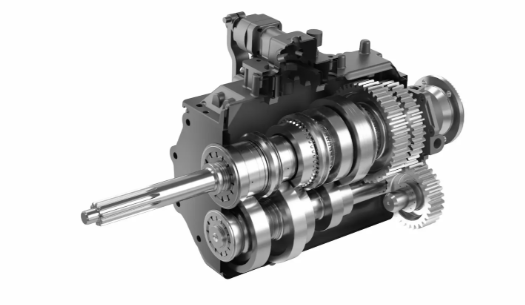

Transmission |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Reverse) |
|
GVW, kg |
10700 |
|
Chassis Frame |
Domex® 650 |
|
Chassis C Frame Dimensions, mm |
210 x 76 x 6 |
|
Fuel Tank Capacity, L |
160 |
|
Brakes |
Dual circuit 'S' cam full air brakes |
|
Tyres |
235/75 R17 Tubeless |
|
Suspension - Front |
Parabolic with anti-roll bar |
|
Suspension - Rear |
Parabolic |
|
Steering |
Power steering |
|
Battery |
12 V, 130 Ah |
|
Alternator |
110 A |
|
Floor Type |
Silicon embedded vinyl |
|
DEF Tank Capacity, L |
27 |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat belts |
|
Suspension Feature |
Anti-roll bar |
|
Telematics Feature |
Eicher Live telematics system |
|
Driver Information Feature |
Intelligent Driver Information System (IDIS 2.0) |
|
Fuel System Feature |
Corrosion-free HPDE fuel tank |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
