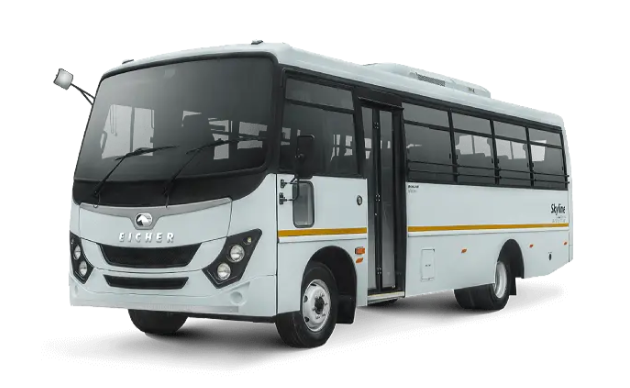

Eicher Skyline Pro Next 3009 H NAC CNG – Staff Buses by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3009 H NAC |
|
Seating Capacity |
35+1+D HHR, 31+1+D PB (2x2) |
|
Wheelbase |
4320 mm |
|
Overall Length |
8957 mm |
|
Overall Width |
2350 mm |
|
Overall Height |
2993 mm |
|
Front Overhang |
2045 mm |
|
Rear Overhang |
2592 mm |
|
Turning Circle Diameter |
15.2 m |
|
CNG Cylinder Capacity |
440 litre |
|
Fuel Type |
CNG |
|
Application |
Staff Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Frame |
Domex® 650 |
|
Chassis Dimensions |
210x76x6 mm |
|
Engine |
E494 TCIC |
|
Displacement |
3770 cc |
|
Power |
100 kW @ 2400 rpm |
|
Torque |
450 Nm @ 1400-2000 rpm |
|
Clutch Diameter |
330 mm |
|
Transmission |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Rev) |
|
GVW |
10.2 t |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic with ARB |
|
Suspension Rear |
Parabolic |
|
Brakes |
Dual circuit 'S' cam full air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5-14 PR (Radial tubeless) |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Safety Feature |
Engine Protection System |
