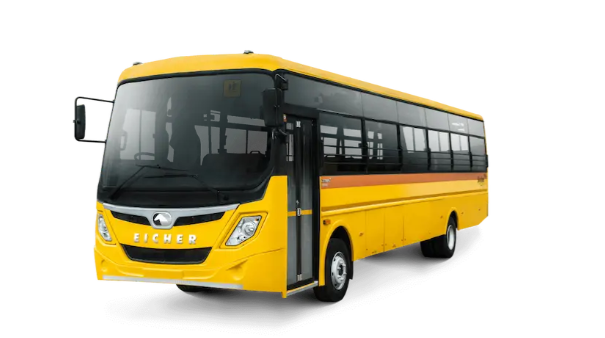

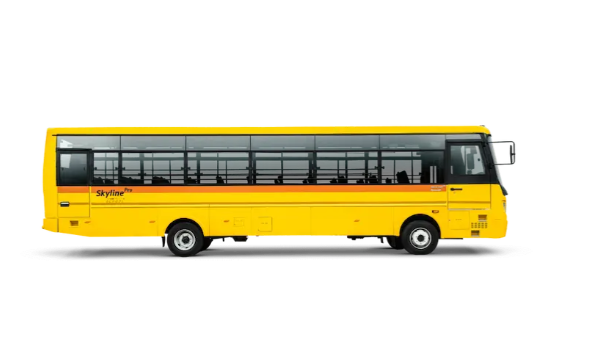

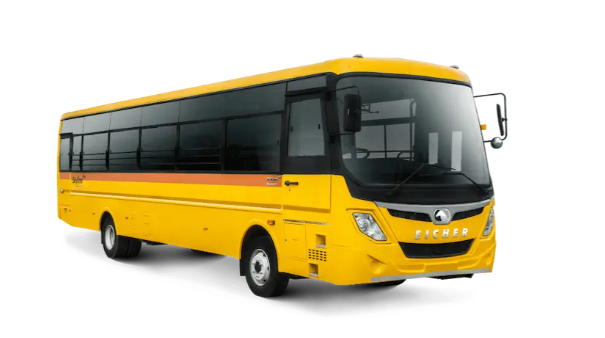

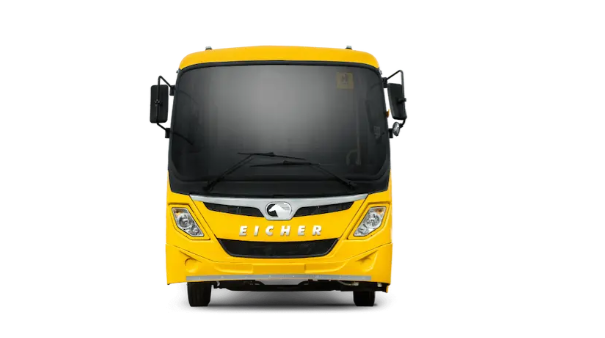

Eicher Skyline Pro Next 3009 H AC Diesel – Eicher Trucks and Buses School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Pro Next 3009 H AC |
|
Seating capacity |
52+D (3x2) |
|
Wheelbase, mm |
4320 |
|
Overall length, mm |
8957 |
|
Overall width, mm |
2350 |
|
Overall height, mm |
3145 |
|
Front overhang, mm |
2045 |
|
Rear overhang, mm |
3134 |
|
Turning circle diameter, m |
15.2 |
|
Engine |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 Rpm |
|
Torque |
500 Nm @ 1200-1800 Rpm |
|
Clutch diameter, mm |
330 |
|
Transmission |
ET40S6 |
|
Transmission type |
Synchromesh (6 Speed + 1 Rev) |
|
GVW, t |
9.8 |
|
Chassis frame |
Domex® 650 |
|
Chassis C frame dimensions, mm |
210 x 76 x 6 |
|
Fuel tank capacity, L |
100 |
|
Brakes |
Dual circuit 'S' cam full air brakes |
|
Tyres |
235/75 R17 Tubeless |
|
Suspension - front |
Parabolic with anti-roll bar |
|
Suspension - rear |
Parabolic |
|
Steering |
Power steering |
|
Battery |
2 x 12V 130Ah |
|
Alternator |
2 x 120A |
|
Floor type |
Silicon embedded vinyl |
|
DEF tank capacity, L |
27 |
|
Fuel Type |
Diesel |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Anti-roll bar |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
