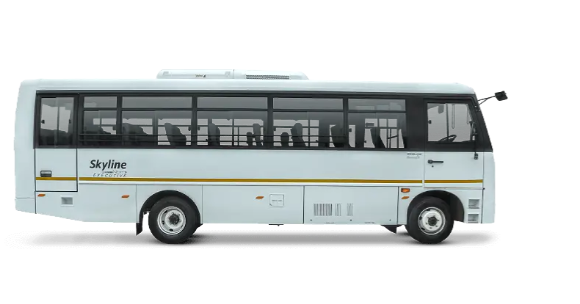

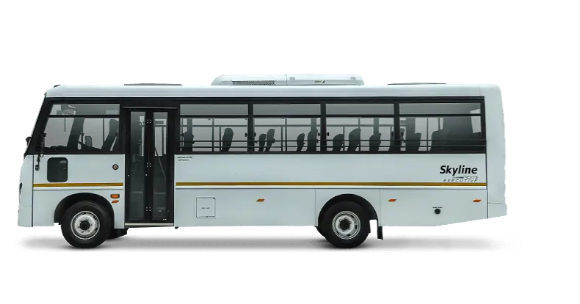

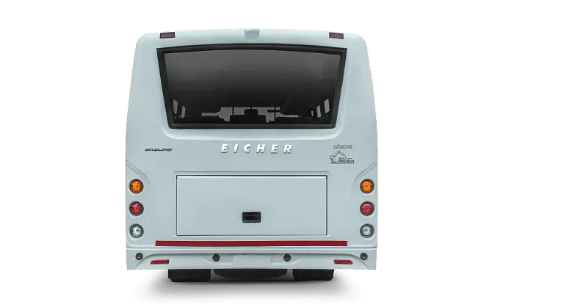

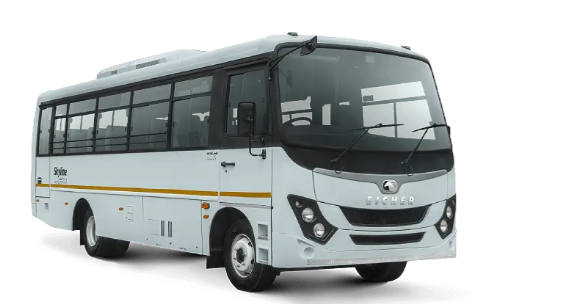

Eicher Skyline Next 2112 M Diesel – Staff Bus Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Next 2112 M |
|
Seating Capacity (3x2) |
50+D HHR |
|
Wheelbase, mm |
5330 |
|
Overall Length, mm |
9970 |
|
Overall Width, mm |
2590 |
|
Overall Height, mm |
3345 |
|
Front Overhang, mm |
1450 |
|
Rear Overhang, mm |
3190 |
|
Turning Circle Diameter, m |
19.4 |
|
Engine Make |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 Rpm |
|
Torque |
500 Nm @ 1200-1800 Rpm |
|
Clutch, mm |
330 |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Reverse) |
|
GVW, t |
13.1 |
|
Chassis Type |
Domex 650 |
|
Chassis dimension, mm |
210x76x6 |
|
Fuel Tank Capacity, L |
190 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
9R20-16PR |
|
Suspension Front |
Weveller Suspension |
|
Suspension Rear |
Weveller Suspension |
|
Steering |
Power Steering |
|
Battery |
12V 130Ah |
|
Alternator |
110A |
|
Floor Type |
Silicon embedded vinyl |
|
DEF Tank Capacity, L |
27 |
|
Fuel Type |
Diesel |
|
Application |
Staff Buses |
Components & Features
|
Specification |
Details |
|
Suspension Feature |
Silent suspension |
|
Tyre Feature |
Radial tubeless tyres |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
