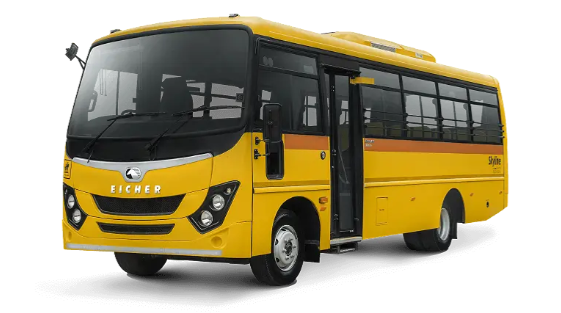

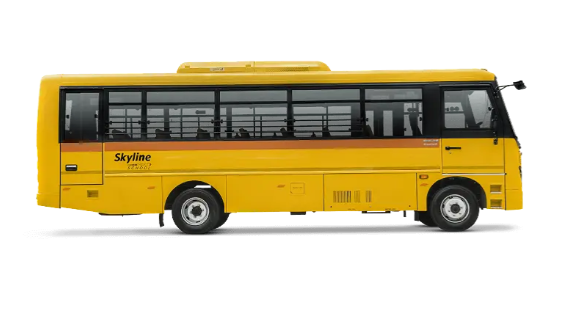

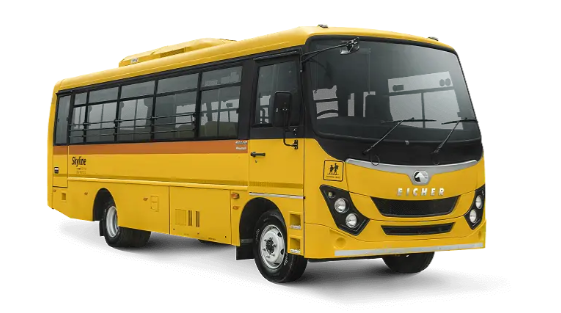

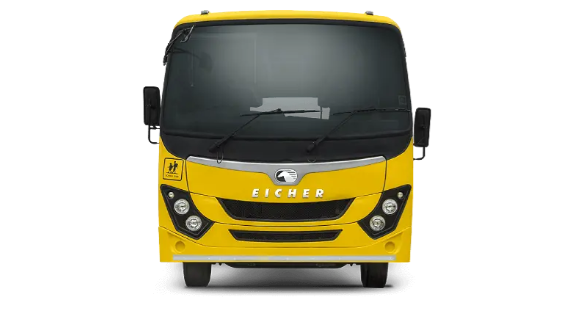

Eicher Skyline Next 2112 M – Diesel School Bus Chassis with AC
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Next 2112 M |
|
Seating Capacity |
59+1+D (3x3) |
|
Wheelbase, mm |
5330 |
|
Overall Length, mm |
9970 |
|
Overall Width, mm |
2590 |
|
Overall Height, mm |
3245 |
|
Min Ground Clearance, mm |
232 |
|
Front Overhang, mm |
1450 |
|
Rear Overhang, mm |
3190 |
|
Turning Circle Diameter, m |
19.2 |
|
Engine Make |
E494 |
|
Displacement, cc |
3770 |
|
Power |
120 kW @ 2600 RPM |
|
Torque |
500 Nm @ 1200–1800 RPM |
|
Clutch Diameter, mm |
330 |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed, 1 Reverse) |
|
GVW |
13.1 t |
|
Chassis Type |
Domex 650 |
|
Chassis C Frame Dimensions, mm |
210 x 76 x 6 |
|
Fuel Tank Capacity, L |
190 |
|
DEF Tank Capacity, L |
27 |
|
Brakes |
Dual Circuit 'S' Cam Full Air Brakes |
|
Tyre Size |
9R20-16PR |
|
Front Suspension |
Weveller Suspension |
|
Rear Suspension |
Weveller Suspension |
|
Steering Type |
Power Steering |
|
Battery |
12V 130Ah |
|
Alternator |
110A |
|
Flooring |
Vinyl |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Efficiency Feature |
MBooster+ |
|
Efficiency Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live Telematics System |
|
Steering Feature |
Adjustable Steering Column |
|
Seating Feature |
Seat Height Adjustment |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat Belts |
|
Safety Feature |
Emergency Exit |
|
Safety Feature |
School Bus Signage and Stop Arm |
|
Safety Feature |
First-Aid Kit |
|
Comfort Feature |
Air Conditioning (AC) Unit |
