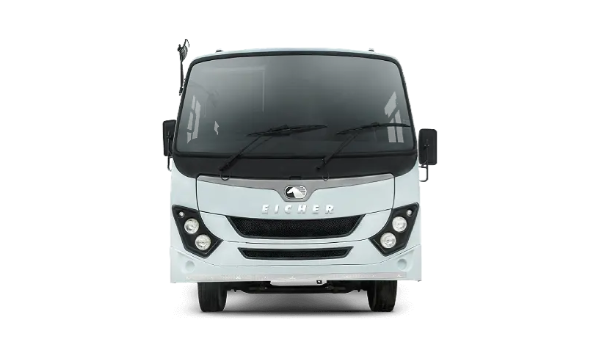

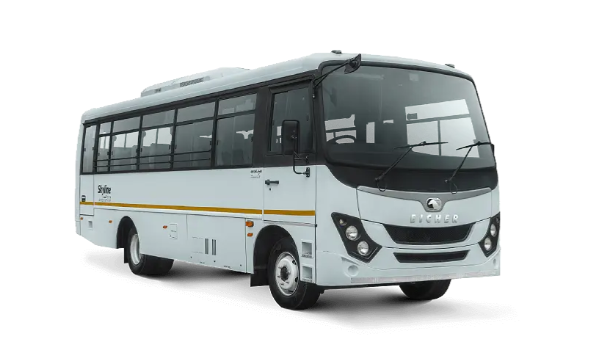

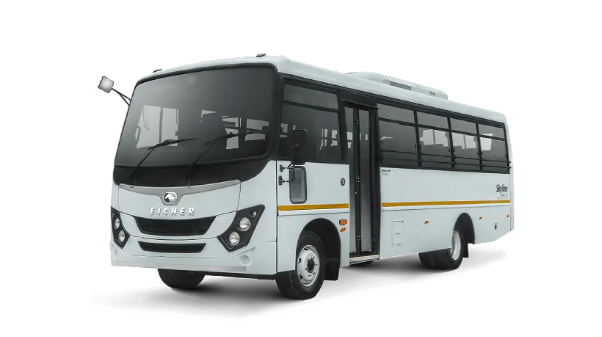

Eicher Skyline Staff Buses Next 2075 H AC – Diesel Staff Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Next 2075 H AC |
|
Seating Capacity |
32+D HHR 2x2, 28+D PB 2x2 |
|
Wheelbase, mm |
4320 |
|
Overall Length, mm |
8112 |
|
Overall Width, mm |
2350 |
|
Overall Height, mm |
2975 |
|
Front Overhang, mm |
1200 |
|
Rear Overhang, mm |
2592 |
|
Turning Circle Diameter, m |
16 |
|
Engine Make |
E474 |
|
Displacement, cc |
2960 |
|
Power |
105 kW @ 3200 RPM |
|
Torque |
400 Nm @ 1200–2500 RPM |
|
Clutch, mm |
310 |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Reverse) |
|
GVW, kg |
8400 |
|
Chassis Type |
Domex 650 |
|
Chassis Dimension, mm |
200 x 65 x 5 |
|
Fuel Tank Capacity, L |
100 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
235/75 R17.5 - 14PR (Radial Tubeless) |
|
Suspension Front |
Parabolic with Anti-Roll Bar |
|
Suspension Rear |
Parabolic |
|
Steering |
Power Steering |
|
Battery |
12 V, 130 Ah |
|
Alternator |
2 x 110 A |
|
Floor Type |
Silicon embedded vinyl |
|
DEF Tank Capacity, L |
19 |
|
Application |
Staff Buses |
Components & Features
|
Specification |
Details |
|
Comfort Feature |
Pasted tinted glass windows |
|
Comfort Feature |
LED-lit modular hat-rack |
|
Comfort Feature |
Plush push-back seats |
|
Seating Feature |
Versatile seating configurations |
|
Comfort Feature |
Air conditioning (AC) unit |
|
Telematics Feature |
Eicher Live telematics system |
|
Driver Information Feature |
Intelligent Driver Information System (IDIS 2.0) |
|
Fuel System Feature |
Corrosion-free HPDE fuel tank |
