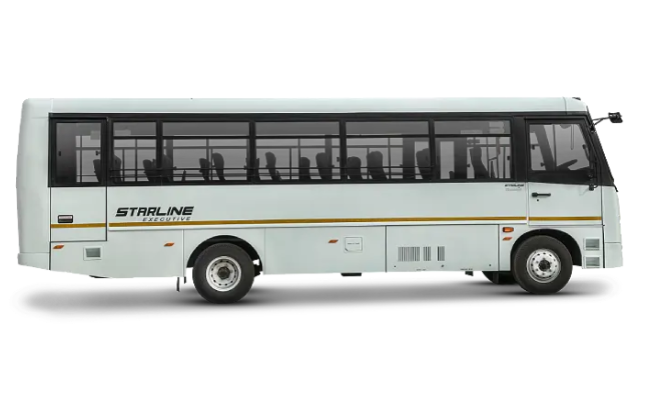

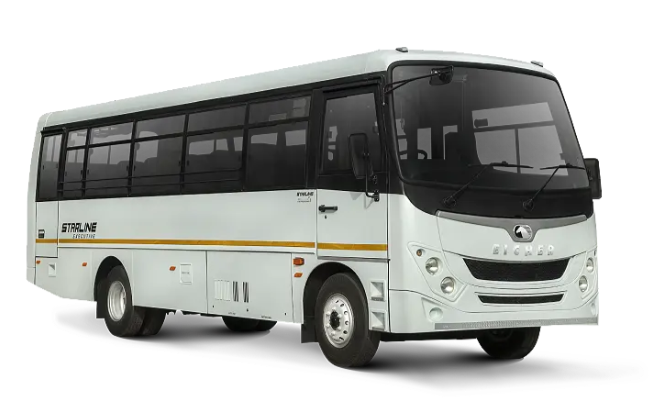

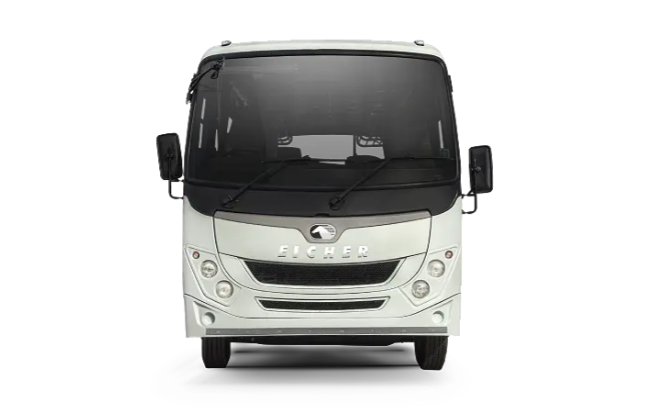

Eicher Skyline Next 2075 G Diesel – Staff Buses by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Skyline Next 2075 G |
|
Seating Capacity |
27+1+D (2x2) |
|
Wheelbase |
3870 mm |
|
Overall Length |
7392 mm |
|
Overall Width |
2350 mm |
|
Overall Height |
2865 mm |
|
Front Overhang |
1200 mm |
|
Rear Overhang |
2322 mm |
|
Turning Circle Diameter |
14.4 m |
|
Fuel Tank Capacity |
100 litre |
|
DEF Tank Capacity |
27 litre |
|
Fuel Type |
Diesel |
|
Flooring |
Silicon embedded vinyl |
|
Application |
Staff Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Frame |
Domex® 650 |
|
Chassis Dimensions |
200x65x5 mm |
|
Engine |
E474 |
|
Displacement |
2960 cc |
|
Power |
90 kW @ 3200 rpm |
|
Torque |
350 Nm @ 1200-2500 rpm |
|
Clutch Diameter |
310 mm |
|
Transmission |
ET35S5 |
|
Transmission Type |
Synchromesh 5-Speed + 1 Rev |
|
GVW |
8.2 t |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic with ARB |
|
Suspension Rear |
Parabolic |
|
Brakes |
Dual circuit ‘S’ cam full air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5-14 PR (Radial tubeless) |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
