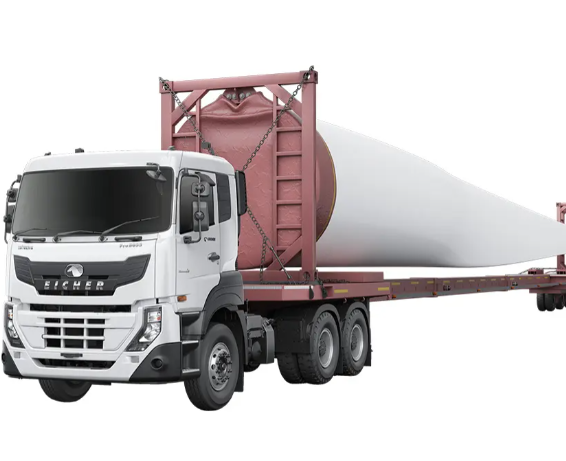

Eicher Pro 8055 Diesel – Heavy-Duty Articulated Tractor by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 8055 |
|
GCW |
55 t |
|
Wheelbase |
4085 mm |
|
Fuel Tank |
350 litre |
|
DEF Tank |
50 litre |
|
Battery |
24 Volt |
|
Fuel |
Diesel |
|
Applications |
ODC, Tip Trailers, Bulker |
|
Application |
Heavy-Duty Articulated Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
VEDX8, 6 Cylinder, BS-VI |
|
Displacement |
7700 cc |
|
Max Power |
258 kW @ 2200 rpm |
|
Max Torque |
1350 Nm @ 1200-1600 rpm |
|
Emission Standard |
BS VI |
|
Gearbox |
ET140 S9 - 9 Forward & 1 Reverse gear |
|
Clutch |
430 mm dia with clutch booster |
|
Rear Axle |
440 DH with Hub reduction |
|
Final Drive Ratio |
6.37 |
|
Chassis Dimensions |
300 x 90 x 8 mm |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf spring with Shock Absorber |
|
Rear Suspension |
Bogie Suspension |
|
Gradeability |
42% |
|
Steering |
Tilt and Telescopic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
11R20 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
