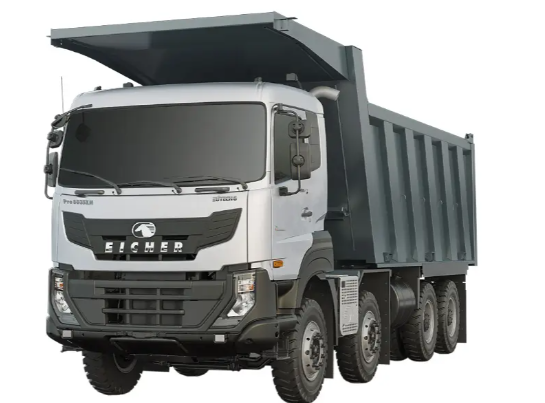

Eicher Pro 8035XM Diesel – Heavy-Duty Mining Tipper Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 8035XM |
|
GVW |
35 t |
|
Fuel Tank |
315 litre |
|
DEF Tank |
50 litre |
|
Minimum Ground Clearance |
308 mm |
|
Turning Circle Diameter |
21.1 m |
|
Electricals & Battery |
24V; 120AH |
|
Fuel |
Diesel |
|
Application |
Heavy-Duty Mining Tipper Truck |
|
Displacement |
7700 cc |
|
Max Power |
258 kW @ 2200 rpm |
|
Max Torque |
1350 Nm @ 1200-1600 rpm |
|
Emission Standard |
BS VI |
|
Gearbox |
ET140S9 - 1C + 8F + 1R |

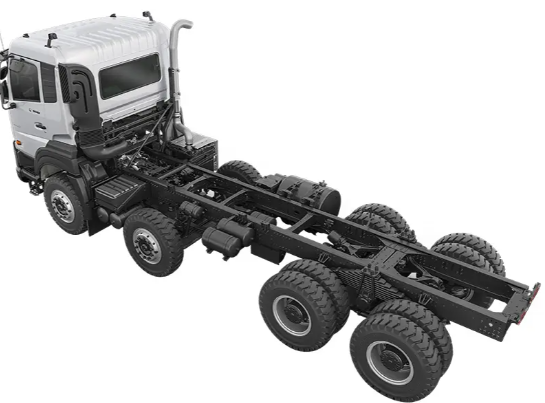

Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
VEDX8, BS-VI |
|
Clutch Type & Diameter |
430 mm, Pull Type, Single Dry Plate |
|
Front Axle |
Heavy-duty forged I-beam, Reverse Elliot type axle with stabilizer bar |
|
Rear Axle |
Hub reduction and two stage differential lock |
|
Rear Axle Ratio |
6.37 |
|
Chassis Dimensions |
300 x 90 x 8 mm with 5mm Full length inner liner |
|
Wheelbase |
5285 mm |
|
Cargo Body |
18 Cum, 19 Cum, 19.5 Cum (Rock Body), 23 Cum, 26 Cum (Box Body) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic spring assembly |
|
Rear Suspension |
Bogie |
|
Service Brake |
S-Cam Dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Gradeability |
75% - Crawler Gear |
|
Steering Type |
Tilt and Telescopic Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
12 x 20 Mining Lug |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
DGMS |
