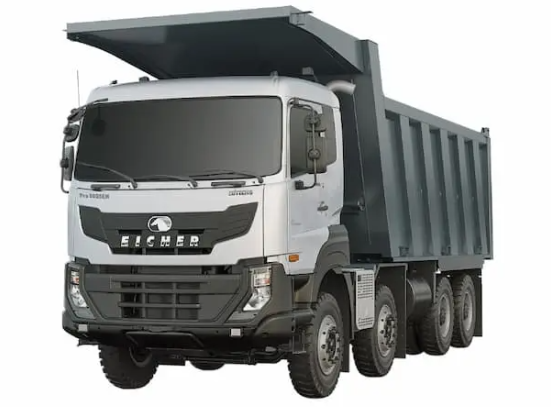

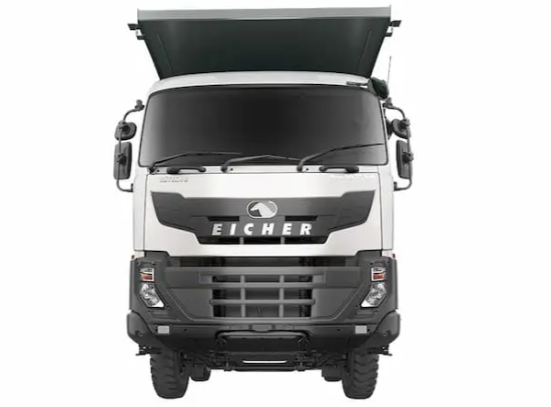

Eicher Pro 8035XM AMT Diesel – Heavy-Duty Tipper Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 8035XM AMT |
|
GVW |
35 t |
|
Wheelbase |
5285 mm |
|
Cargo Body |
CBC, 18RB, 19RB, 19.5RB, 23BB, 26 Coal Body |
|
Fuel Tank |
315 litre |
|
DEF Tank |
50 litre |
|
Battery |
24V; 120Ah |
|
Fuel Type |
Diesel |
|
Turning Circle Diameter |
21.1 m |
|
GC |
308 mm |
|
Application |
Heavy-Duty Tipper Truck |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
VEDX8 |
|
Displacement |
7700 cc |
|
Max. Power |
261 kW @ 2200 rpm |
|
Max. Torque |
1350 Nm @ 1200-1600 rpm |
|
Emission |
BS VI |
|
Clutch Diameter |
430 mm |
|
Gearbox |
9S AMT (E-Smart Shift) |
|
Gear Shift |
9 Speed AMT |
|
Front Axle |
Reverse Elliot type |
|
Rear Axle |
Hub reduction with full differential lock and anti-roll bar |
|

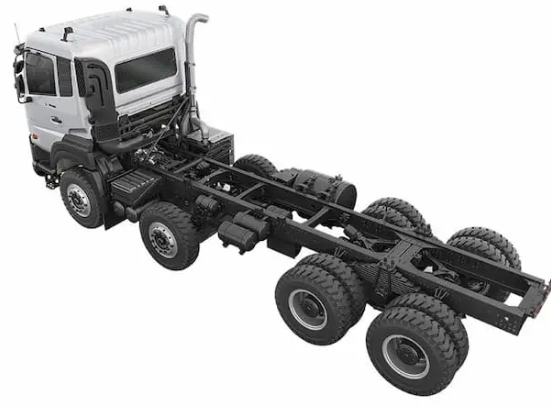

Chassis Dimensions |
300 x 90 x 8 mm with 5 mm full length inner liner |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Bogie |
|
Service Brake |
S-Cam dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Gradeability |
75% |
|
Steering |
Tilt and telescopic power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
12 x 20 Mining Lug |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Diagnostic Feature |
Onboard Diagnostics |
|

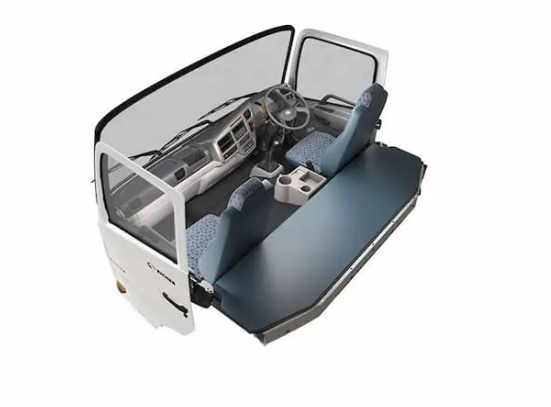

Cabin Feature |
Sleeper cabin with air suspended driver seat |
