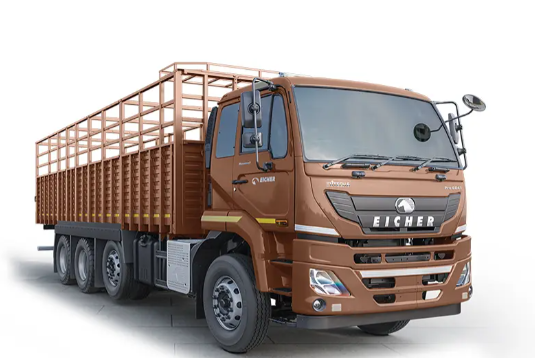

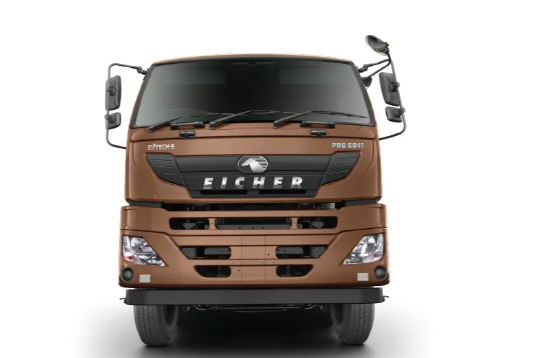

Eicher Pro 6041 Diesel – Heavy-Duty Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 6041 |
|
GVW |
40.5 t |
|
Wheelbase |
5800 mm, 6800 mm |
|
Cargo Body |
CBC |
|
Cargo Body Length (Internal) |
7917 mm, 8822 mm, 9595 mm |
|
Fuel Tank |
350 litre |
|
DEF Tank |
50 litre |
|
Battery |
2 x 12V = 24V |
|
Fuel |
Diesel |
|
Warranty |
1 Years/Unlimited km on vehicle, 3 Years/Unlimited km on Engine and Gearbox |
|
Application |
Heavy-Duty Truck |

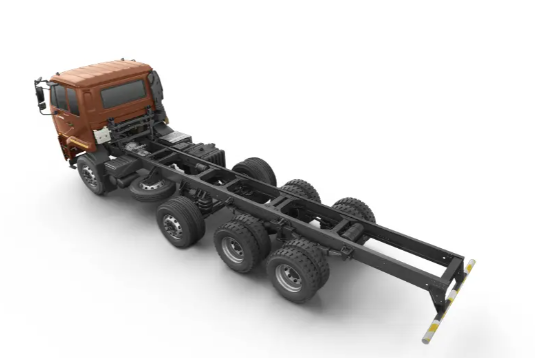

Frame & Drivetrain
|
Specification |
Details |
|
Engine |
VEDX5, 4 Cylinder - BSVI |
|
Displacement |
5700 cc |
|
Max Power |
176.5 kW @ 2200 rpm |
|
Max Torque |
900 Nm @ 1200-1600 rpm |
|
Emission Standard |
BS VI |
|
Gearbox |
ET 90 S6, Manual |
|
Clutch Diameter |
395 mm |
|
Rear Axle |
Heavy Duty fully floating single reduction 458 mm drive head |
|
Final Drive Ratio |
5.86 |
|
Chassis Dimensions |
300 x 76 x 7 mm |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Semi elliptic Slipper |
|
Brakes |
Dual Circuit full air 'S' cam with ABS |
|
Gradeability |
18% |
|
Steering |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/90R20 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
