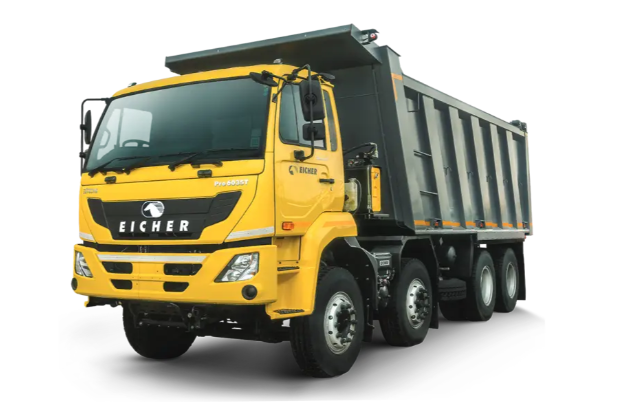

Eicher Pro 6035T HRT Diesel Heavy-Duty Tipper
Specifications
|
Specification |
Details |
|
Model |
Pro 6035T HRT BSVI |
|
GVW |
35000 kg |
|
Body Options |
CBC, 20 & 23 BB |
|
Engine Model |
VEDX8, 7.7L |
|
Max Power |
194 kW @ 2200 rpm |
|
Max Torque |
1000 Nm @ 1100-1700 rpm |
|
Emission |
BSVI |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
315 litre |
|
DEF Tank |
50 litre |
|
Battery |
24V:120Ah |
|
Gradeability |
41% |
|
Application |
heavy-duty |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
5285 mm |
|
Turning Circle Diameter |
18.6 m |
|
Ground Clearance |
290 mm |
|
Gearbox |
ET1409S |
|
Clutch |
430 mm |
|
Front Axle |
Forged Reverse Elliot Type with Anti Roll Bar |
|
Rear Axle |
Heavy-Duty Hub Reduction Tandem Axle with Anti Roll Bar |
|
Chassis Dimensions |
300x90x8mm, with 5mm full length inner liner |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Bogie |
|
Service Brake |
S-cam Dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Steering |
Tilt and Telescopic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
11x20 (Nylon, Mining, Radial) |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
My Eicher |
|
Feature: Diagnostics |
Onboard Diagnostics |
|
Feature: Cabin |
Day cabin with HVAC & Air suspended Driver Seat |
