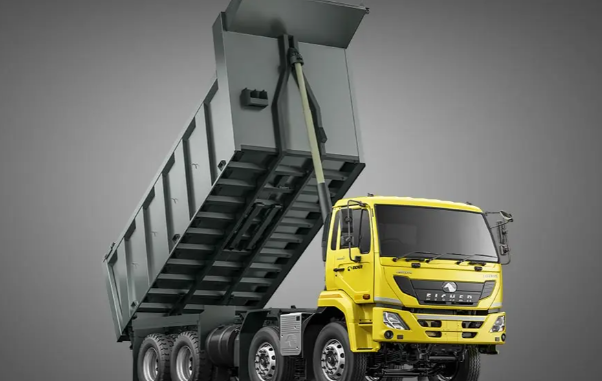

Eicher Pro 6035T Diesel – Heavy-Duty Tipper Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 6035T |
|
GVW |
35 t |
|
Wheelbase |
5285 mm |
|
Cargo Body |
CBC, 20 CuM Box, 23 CuM Box |
|
Fuel Tank |
315 litre |
|
DEF Tank |
50 litre |
|
Minimum Ground Clearance |
252 mm |
|
Turning Circle Diameter |
18.6 m |
|
Electricals & Battery |
24V; 120AH |
|
Fuel |
Diesel |
|
Application |
Heavy-Duty Tipper Truck |

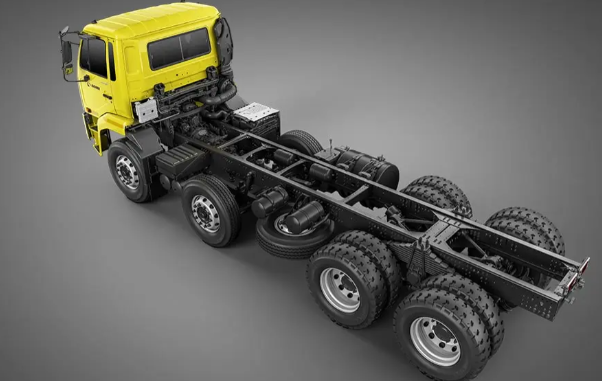

Frame & Drivetrain
|
Specification |
Details |
|
Engine |
VEDX8 BS-VI |
|
Displacement |
7700 cc |
|
Max Power |
194 kW @ 2200 rpm |
|
Max Torque |
1000 Nm @ 1100-1700 rpm |
|
Emission Standard |
BS VI |
|
Gearbox |
ET 140S9, 9 speed |
|
Clutch Type & Diameter |
430 mm, pull type, Single dry plate |
|
Front Axle |
Forged I-beam Reverse Elliot type axle with stabilizer bar |
|
Rear Axle |
Single reduction tandem axle with interaxle lock & anti-roll bar |
|
Rear Axle Ratio |
5.29 |
|
Differential Lock |
Inter-axle |
|
Chassis Dimensions |
300 x 90 x 8 mm with 5 Full length inner liner |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Bogie |
|
Service Brake |
S-Cam Dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Engine Brake |
Standard |
|
Gradeability |
39% Crawler Gear |
|
Steering Type |
Tilt and Telescopic Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
11 x 20 (Nylon, Mining, Radial) |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
