Eicher Pro 6028TM 224 kW Diesel – Heavy-Duty Transit Mixer by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 6028TM 224 kW |
|
GVW |
28 t |
|
Wheelbase |
4585 mm |
|
Cargo Body |
9 CuM, 10 CuM |
|
Fuel Tank |
220 litre |
|
DEF Tank |
33 litre |
|
Fuel Type |
Diesel |
|
Turning Cycle Dia |
17 m |
|
Ground Clearance |
285 mm |
|
Application |
Heavy-Duty Transit Mixer |

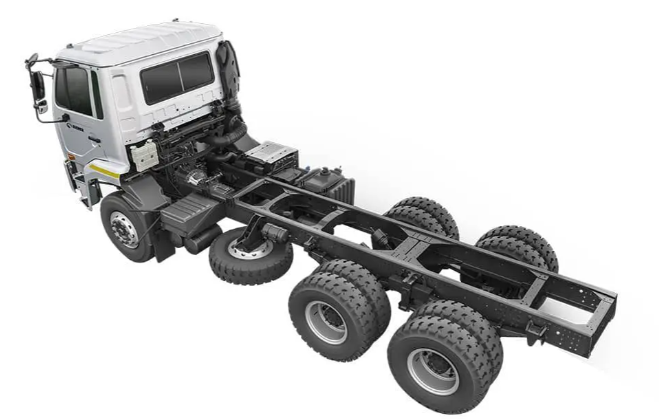

Frame & Drivetrain
|
Specification |
Details |
|
Engine |
VEDX8, 7.7L, 6 Cylinder BSVI ODBII |
|
Displacement |
7700 cc |
|
Max Power |
224 kW @ 2200 rpm |
|
Max Torque |
1200 Nm @ 1200-1600 rpm |
|
Emission |
BS VI |
|
Clutch Diameter |
430 mm |
|
Transmission |
ET140 9S |
|
Gear Shift |
9 Speed |
|
Front Axle |
Heavy duty forged I-Beam Reverse Elliot type |
|
Rear Axle |
Single reduction with differential lock |
|
Drive Head |
440 mm |
|
Rear Axle Ratio |
5.29 |
|
Chassis Dimension |
300 x 76 x 7 mm with 5 mm full liner (Bogie) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic Leaf Spring |
|
Rear Suspension |
Bogie |
|
Anti Roll Bar |
Yes (Rear) |
|
Gradeability |
65% |
|
Steering |
Tilt and Telescopic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/95D20 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Drive Feature |
Easy Drive |
|
Cabin |
Day cabin with HVAC and mechanical suspended seat |
