Eicher Pro 6028TM 157kW Diesel – Heavy-Duty Mining Tipper Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 6028TM 157kW |
|
GVW |
28 t |
|
Wheelbase |
4000 mm |
|
Cargo Body |
7 Cum, 8 Cum |
|
Fuel Tank |
220 litre |
|
DEF Tank |
33 litre |
|
Turning Circle Diameter |
14.2 m |
|
Electricals & Battery |
24V; 120AH |
|
Fuel |
Diesel |
|
Application |
Heavy-Duty Mining Tipper Truck |

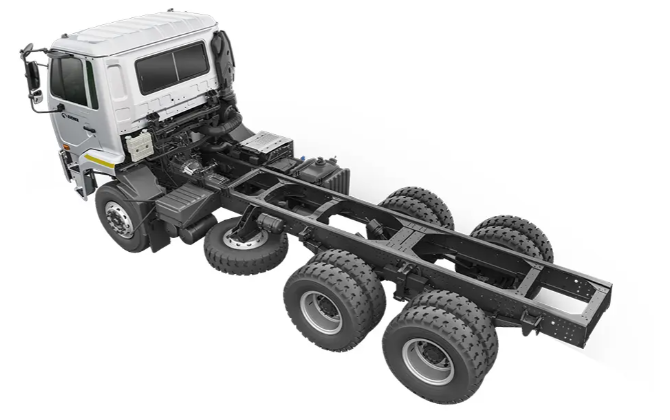

Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
VEDX5, BS-VI |
|
Displacement |
5700 cc |
|
Max Power |
157 kW @ 2200 rpm |
|
Max Torque |
825 Nm @ 1200-1600 rpm |
|
Emission Standard |
BS VI |
|
Gearbox |
ET90S6 - 6F+1R |
|
Clutch Type & Diameter |
395 mm, Push Type, Single Dry Plate |
|
Front Axle |
Forged I-beam, Reverse Elliot type axle with stabilizer bar |
|
Rear Axle |
Single reduction tandem axle with interaxle lock |
|
Rear Axle Ratio |
5.83 |
|
Differential Lock |
Inter-axle |
|
Chassis Dimensions |
285 x 76 x 7 mm |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic |
|
Rear Suspension |
Bell Crank |
|
Service Brake |
S-Cam Dual line with ABS |
|
Parking Brake |
Pneumatically operated hand control valve |
|
Gradeability |
25% in 1st Gear |
|
Steering Type |
Tilt and Telescopic Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/95D20 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
