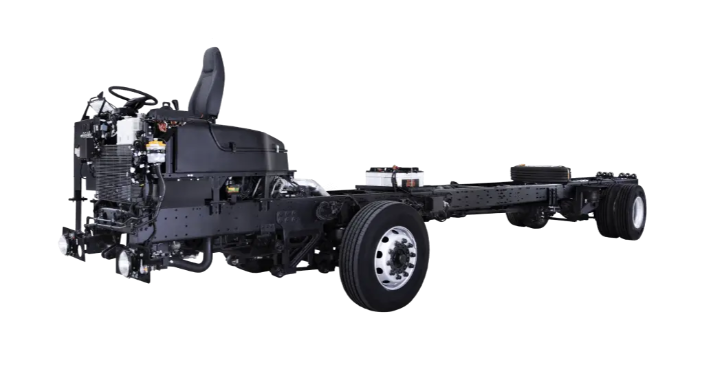

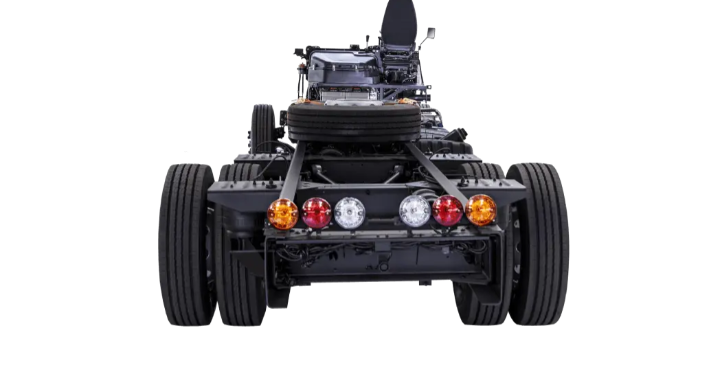

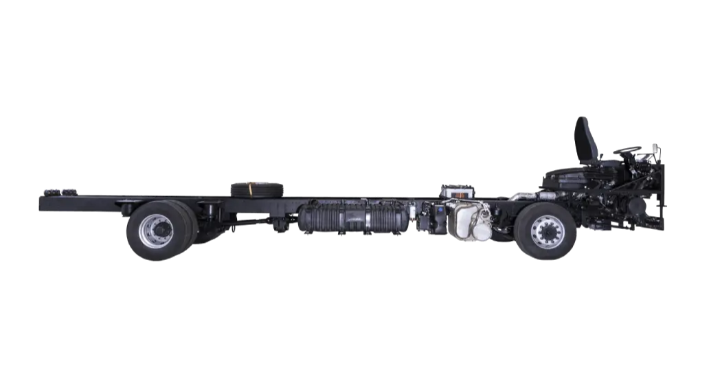

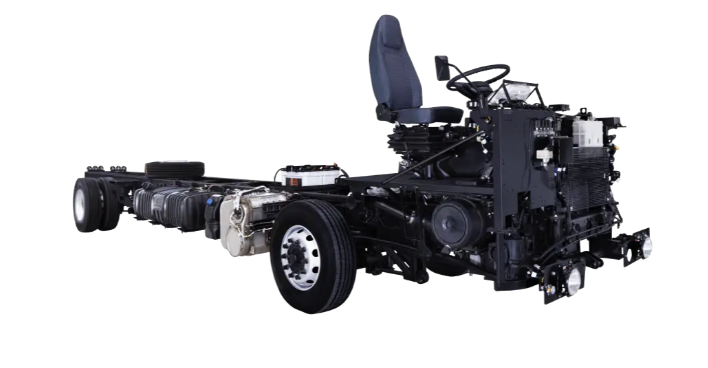

Eicher Pro 6019 Diesel – Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Pro 6019 S LPO; Pro 6019 R LPO |
|
Wheelbase |
6900 mm; 6200 mm |
|
Overall Length |
11745 mm; 10629 mm |
|
Overall Width |
2540 mm |
|
Overall Height |
2783 mm |
|
Ground Clearance |
227 mm |
|
Front Overhang |
2255 mm |
|
Rear Overhang |
2590 mm; 2174 mm |
|
Turning Circle Diameter |
22.2 m; 23.7 m |
|
Fuel Tank Capacity |
425 litre |
|
DEF Tank Capacity |
33 litre |
|
Fuel Type |
Diesel |
|
Application |
Chassis |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex® 650 |
|
Chassis Dimension |
285x76x6 mm |
|
Engine Make |
VEDX5 |
|
Power |
176 kW @ 2200 RPM |
|
Torque |
900 Nm @ 1200-1600 RPM |
|
Clutch Diameter |
395 mm |
|
Transmission Make |
ET90S6 |
|
Transmission Type |
Synchromesh 6-speed + 1 Rev |
|
GVW |
19.5 t; 18.5 t |
|
Battery |
2 x 24V-180Ah |
|
Alternator |
2 x 150 A (with engine-mounted AC compressor); 2 x 90 A (others) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front - Weveller/Air, Rear - Air; Front & Rear - Air with ARB |
|
Brakes |
Front - Disc/Drum brakes, Rear - Drum brakes; Front - Disc brakes, Rear - Drum brakes |
|
Steering |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/80R22.5 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Safety Feature |
Engine Protection System |
|
Comfort Feature |
Air conditioning (AC) unit |
