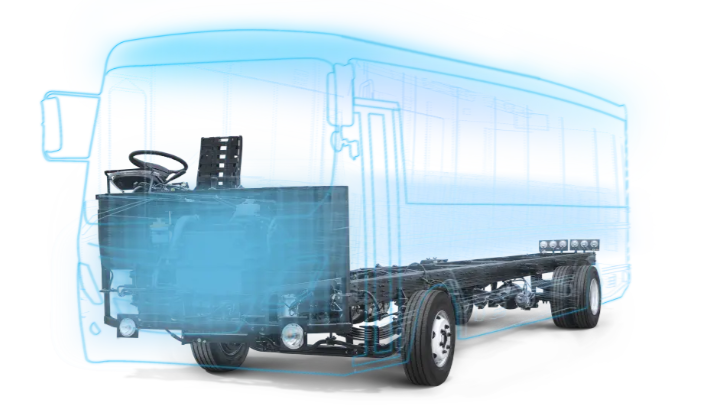

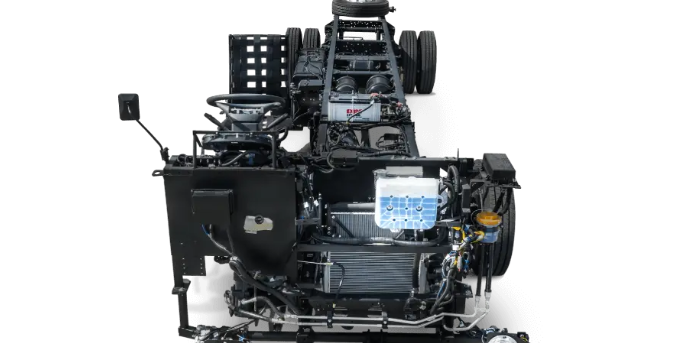

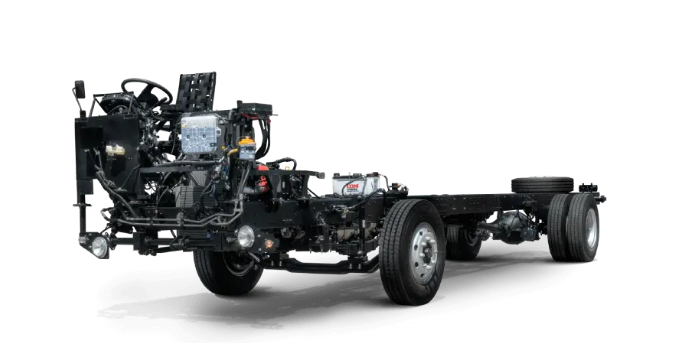

Eicher Pro 3014 N LPO Diesel – Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Pro 3014 N LPO |
|
Wheelbase |
5840 mm |
|
Overall Length |
11460 mm |
|
Overall Width |
2540 mm |
|
Front Overhang |
2205 mm |
|
Rear Overhang |
3415 mm |
|
Turning Circle Diameter |
21.5 m |
|
Fuel Tank Capacity |
160 litre |
|
DEF Tank Capacity |
27 litre |
|
Fuel Type |
Diesel |
|
Application |
Chassis |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Frame |
Domex® 650 |
|
Chassis Dimensions |
230x76x6 mm |
|
Engine Make |
E494 TC IC 3.8L |
|
Displacement |
3800 cc |
|
Power |
134 kW @ 2600 rpm |
|
Torque |
600 Nm @ 1200-1800 rpm |
|
Clutch |
362 mm |
|
Transmission Make |
ET70S6 |
|
Transmission Type |
Synchromesh - 6F + 1R |
|
GVW |
14.49 t |
|
Battery |
12V, 130Ah - NAC / 24V, 150Ah - AC |
|

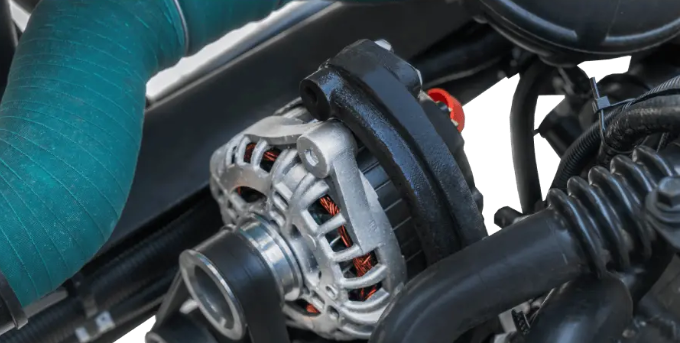

Alternator |
110A - NAC / 75A - AC |
|
Propeller Shaft |
Monotron, LFL |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Rear |
Weveller |
|
Brakes |
Air Brakes with APU |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
10R20 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
