Eicher Pro 3009 H Diesel – Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Pro 3009 H Chassis |
|
Wheelbase |
4320 mm |
|
Overall Length |
8693 mm |
|
Overall Width |
2226 mm |
|
Overall Height |
2470 mm |
|
Ground Clearance |
185 mm |
|
Front Overhang |
1918 mm |
|
Rear Overhang |
2455 mm |
|
Turning Circle Diameter |
15.2 m |
|
Fuel Tank Capacity |
100 litres |
|
DEF Tank Capacity |
27 litres |
|
Fuel Type |
Diesel |
|
Application |
Chassis |
Frame & Drivetrain
|
Specification |
Details |
|

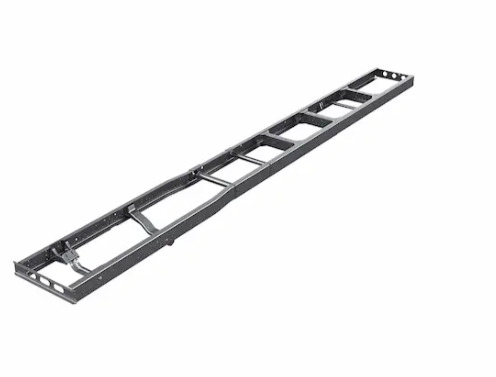

Chassis Type |
Ladder - Joggle type |
|
Chassis dimension |
210 x 76 x 6 mm |
|

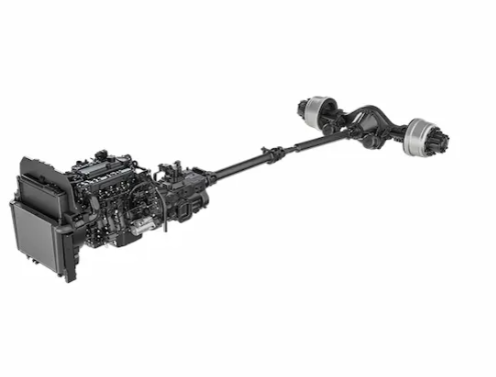

Engine Make |
E494 |
|
Displacement |
3770 cc |
|
Power |
120 kW @ 2600 Rpm |
|
Torque |
500 Nm @ 1200-1800 Rpm |
|
Clutch |
330 mm |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Rev) |
|
GVW |
9.8 t |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic With ARB |
|
Suspension Rear |
Parabolic With ARB |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5 - 14PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
