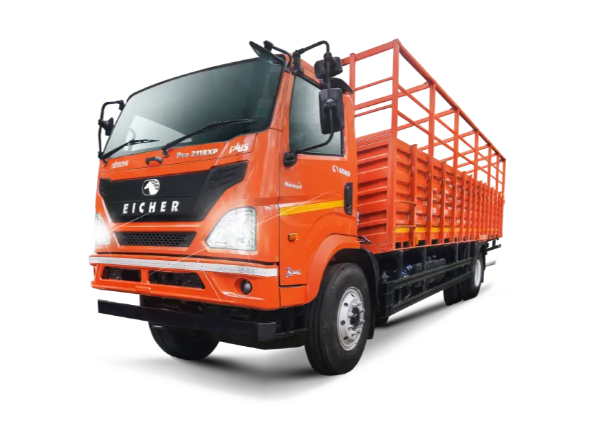

Eicher Pro 2118XP Plus Diesel – Medium-Duty Rigid Haulage Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 2118XP Plus |
|
GVW |
18.25 t |
|
Wheelbase |
4295 mm, 5105 mm, 6690 mm |
|
Cargo Body |
CBC, HSD |
|
Fuel Tank |
190 litre, 425 litre |
|
DEF Tank |
27 litre |
|
Battery |
12V, 100Ah |
|
Fuel Type |
Diesel |
|
Max Speed |
80 Km/h |
|
Application |
Medium-Duty Rigid Haulage Truck |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
E494 4Cyl 4V CRS BSVI |
|
Displacement |
3770 cc |
|
Max Power |
119.3 kW @ 2600 rpm |
|
Max Torque |
500 Nm @ 1200-1800 rpm |
|
Emission |
BS VI |
|
Clutch Diameter |
362 mm |
|
Transmission |
ET60S7 |
|
Gear Shift |
7 Speed |
|
Rear Axle |
Fully floating, hypoid |
|
Final Drive Ratio |
5.857 |
|
Chassis Dimensions |
230 x 76 x 6 mm |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic (5 nos.) |
|
Rear Suspension |
Semi-elliptic with parabolic helper springs (12 main & 5 helper) |
|
Brakes |
APU |
|
Steering |
Tilt and Telescopic |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/90 R 20 |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|

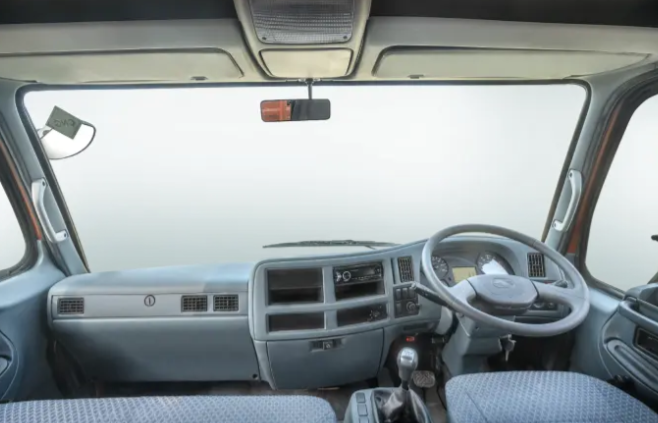

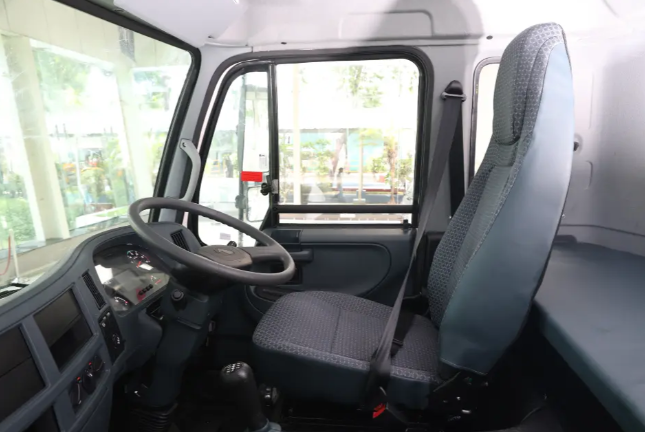

Cabin |
Day cabin |
