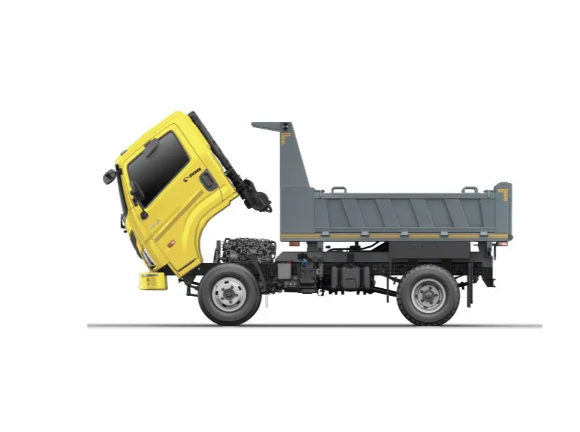

Eicher Pro 2080XPT Diesel – Medium-Duty Tipper Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 2080XPT |
|
GVW |
8.99 t |
|
Fuel Tank |
60 litre (Anti-Corrosive Composite HDP Polymer) |
|
Turning Circle Diameter |
11 m |
|
Battery |
12 V - 100 AH |
|
Fuel Type |
Diesel |
|
Warranty |
2 years unlimited km on vehicle, 3 years unlimited km on engine & gearbox |
|
Application |
Medium-Duty Tipper Truck` |
|
Max. Power Output |
104 kW @ 1200-2500 rpm |
|
Max. Torque Output |
400 Nm @ 1200-2500 rpm |
|
Displacement |
2960 cc |
|
Engine |
E474 Turbocharged Intercooled CRS |
|
Emission Standard |
BS VI |
|
Gearbox |
Eicher 4M5G |
Frame & Drivetrain
|
Specification |
Details |
|
Gear Shift |
5 Speed with hybrid gear shift lever |
|
Clutch Dia |
310 mm |
|
Propeller Shaft |
Monotron (Lubrication for life) |
|
Wheelbase |
2935 mm |
|
Ground Clearance |
195 mm |
|
Cargo Body |
4.5 Cum Fully Built Tipper, CBC, DSD |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi-elliptical laminated leaves with front shock absorber |
|
Brakes (Service) |
Air brakes (Drum) |
|
Brakes (Exhaust) |
Pneumatic Assisted, Mounted on Engine |
|
Gradeability |
44% |
|
Steering |
Tilt & Telescopic, Vacuum Assisted Standard Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
8.25 x 16 - 16PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|

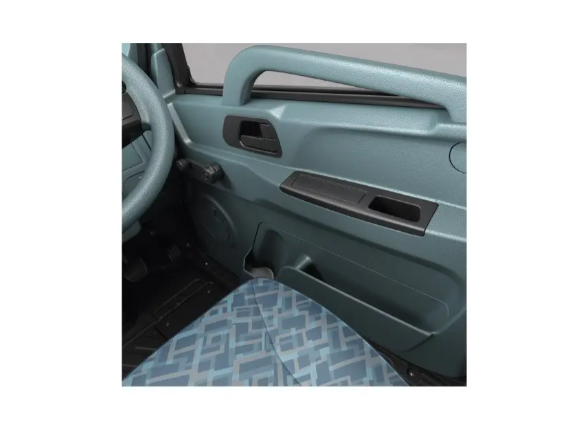

Cabin Feature |
Utility spaces |
