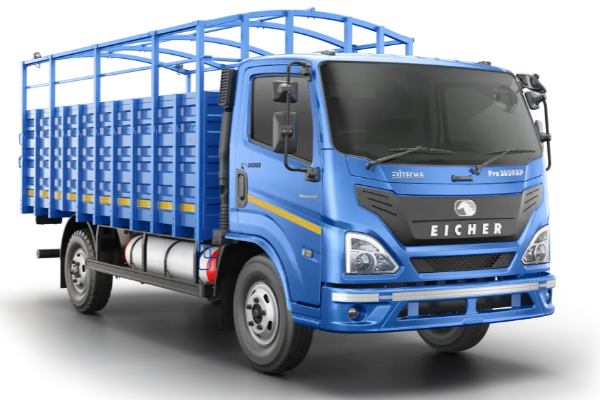

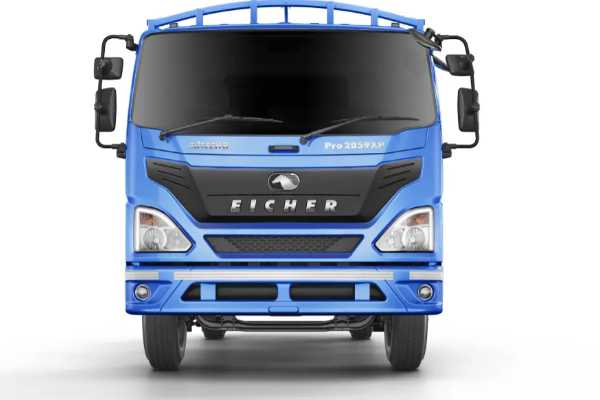

Eicher Pro 2059XP CNG – Medium-Duty CNG City Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 2059XP CNG |
|
GVW |
7.49 t |
|
Fuel Tank Capacity |
250 kg, 320 kg |
|
Turning Circle Diameter |
14.8 m |
|
Battery |
12 V - 130 AH |
|
Fuel |
CNG |
|
Warranty |
2 year/unlimited km on vehicle, 3 years/unlimited km on engine and gearbox |
|
Application |
Medium-Duty CNG City Truck |
|
Engine |
E483-NA BSVI CNG 70KW |
|
Displacement |
3300 cc |
|
Max. Power Output |
70 kW @ 3100 rpm |
|
Max. Torque Output |
245 Nm @ 1600 rpm |
|
Emission Standard |
BS VI |
|
Gearbox |
ET 30S5 |
|
Gear Shift |
5 Speed with hybrid gear shift lever |
Frame & Drivetrain
|
Specification |
Details |
|
Clutch Dia |
310 mm |
|
Wheelbase |
3770 mm |
|
Cargo Body Length (Internal) |
4325 mm, 4941 mm |
|
Cargo Body Width (Internal) |
2002 mm |
|
Ground Clearance |
195 mm |
|
Cargo Body Type |
CBC/HSD |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi-elliptical laminated leaves with front shock absorber |
|
Suspension Rear |
Semi-elliptical laminated leaves with helper leaf springs |
|
Brakes |
Hydraulic brakes (Drum) |
|
Gradeability |
22% |
|
Steering |
Tilt and telescopic, Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
8.25 x 16 - 16PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|

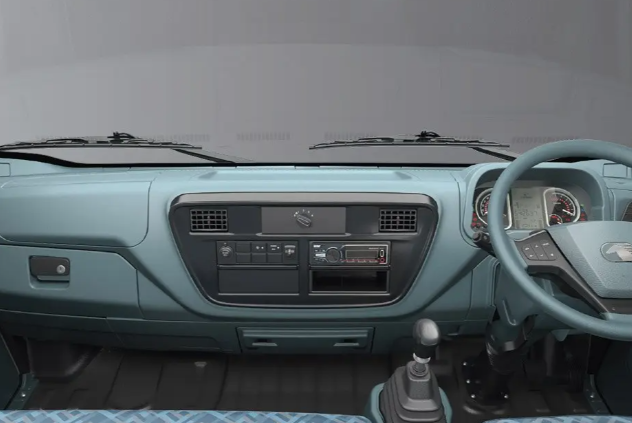

Cabin Feature |
Lateral sleeping provision |
|
Cabin Feature |
Cooler cabin (up to 8 degrees) |
|
Cabin Feature |
Ambient noise reduction |
|
Cabin Feature |
Utility features |
