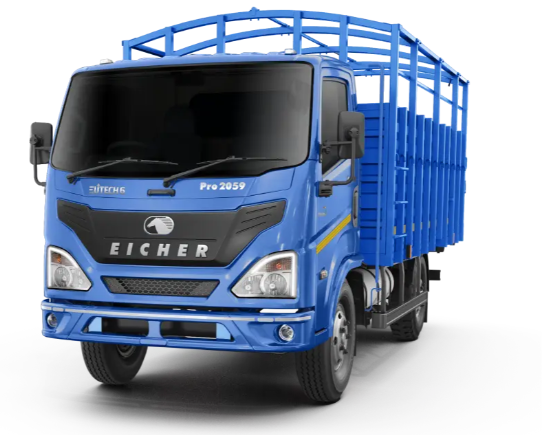

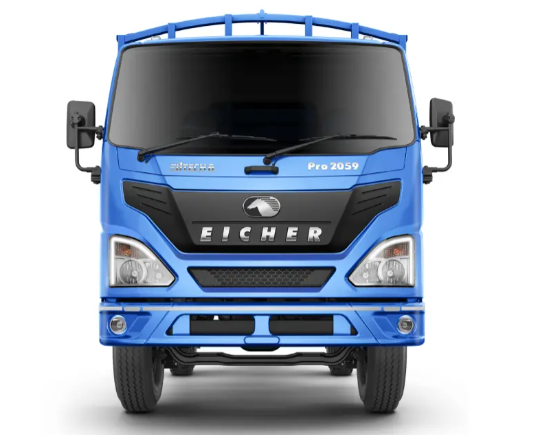

Eicher Pro 2059 CNG – Light-Duty CNG City Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 2059 CNG |
|
GVW |
6.95 t |
|
Wheelbase |
2580 mm, 3370 mm |
|
Cargo Body Length (Internal) |
3177 mm, 4325 mm |
|
Cargo Body Width (Internal) |
2002 mm |
|
Cargo Body |
CBC/HSD |
|
Fuel Tank Capacity |
270 kg |
|
Ground Clearance |
190 mm |
|
Turning Circle Diameter |
10.1 m, 13.2 m |
|
Fuel |
CNG |
|
Warranty |
2 year/unlimited km on Vehicle, 3 years/unlimited km on Engine and Gearbox |
|
Application |
Light-Duty CNG City Truck |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
E483-NA BSVI CNG 70KW |
|
Displacement |
3300 cc |
|
Max. Power Output |
70 kW @ 3100 rpm |
|
Max. Torque Output |
245 Nm @ 1600 rpm |
|
Emission Standard |
BS VI |
|
Transmission |
ET 30S5 |
|
Gear Type |
5 Speed with hybrid gear shift lever |
|
Clutch Dia |
275 mm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi-elliptical laminated leaves |
|
Suspension Rear |
Semi-elliptical laminated leaves |
|
Brakes (Service) |
Hydraulic brakes (Drum) |
|
Brakes (Exhaust) |
Vacuum Assisted, Mounted on Engine |
|
Gradeability |
26% |
|
Steering |
Tilt and telescopic, standard power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
8.25 x 16 - 16PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Cabin Feature |
Lateral sleeping provision |
|
Cabin Feature |
Cooler cabin (up to 8 degrees) |
|
Cabin Feature |
Ambient noise reduction |
|
Cabin Feature |
Utility spaces |
