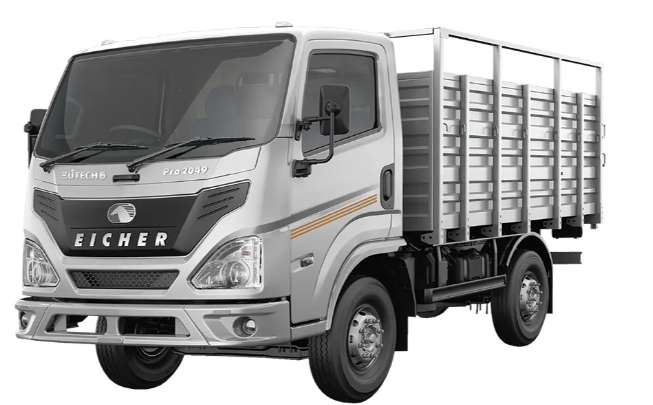

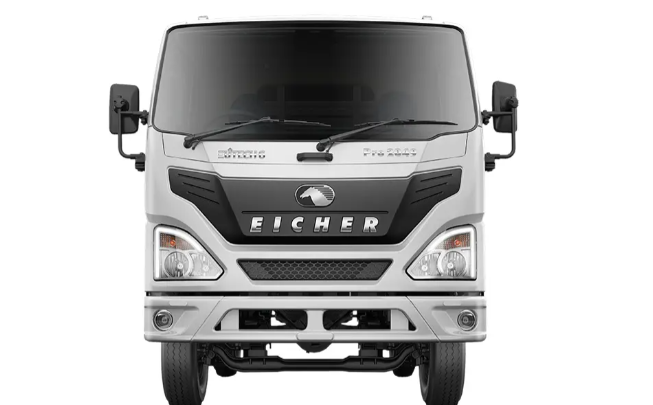

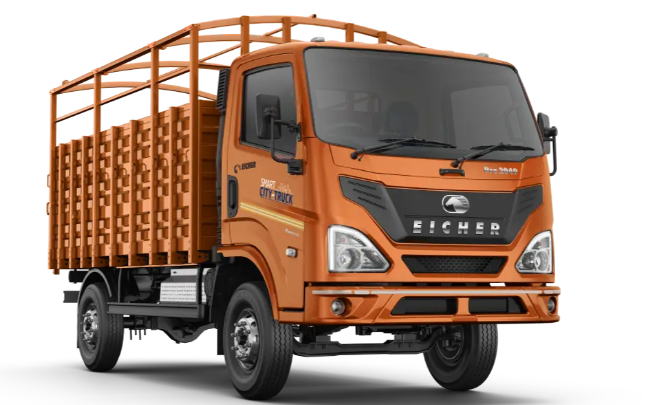

Eicher Pro 2049 Diesel – Sub-5-Ton Mini Truck by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Truck Model |
Pro 2049 |
|
GVW |
4.995 t |
|
Wheelbase |
2580 mm, 3370 mm |
|
Cargo Body Length (Internal) |
3177 mm, 3658 mm |
|
Cargo Body Width (Internal) |
1873 mm, 2011 mm |
|
Cargo Body |
CBC/HSD |
|
Fuel Tank Capacity |
60 litre |
|
DEF Tank Capacity |
27 litre |
|
Ground Clearance |
190 mm |
|
Turning Circle Diameter |
10 m, 13.1 m |
|
Fuel Type |
Diesel |
|
Warranty |
1 year/unlimited km on Vehicle, 3 years/unlimited km on Engine and Gearbox |
|
Application |
Sub-5-Ton Mini Truck |

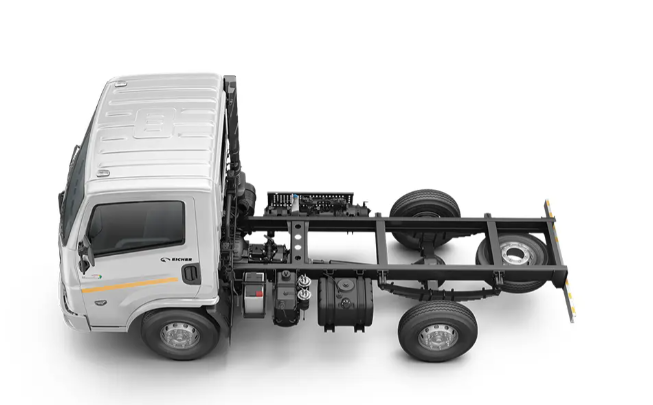

Frame & Drivetrain
|
Specification |
Details |
|
Engine |
E366, 3 Cylinder, 4 Valve, 2 litre CRS |
|
Displacement |
2000 cc |
|
Power Output |
75 kW @ 3200 rpm |
|
Torque Output |
285 Nm @ 1250-2500 rpm |
|
Emission Standard |
BS VI |
|
Transmission |
ET 30S5 (5F + 1R) |
|
Gear Type |
5 Speed |
|
Clutch Diameter |
280 mm |
|
Propeller Shaft |
Monotron propeller shaft |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi-elliptical laminated leaves with front shock absorber |
|
Brakes |
Full Hydraulic Brake with Disc brake at all wheel ends |
|
Gradeability |
34% |
|
Steering |
Tilt and Telescopic |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
7.00 x 16 - 14PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live telematics system |
|
Cabin Feature |
Utility features |
