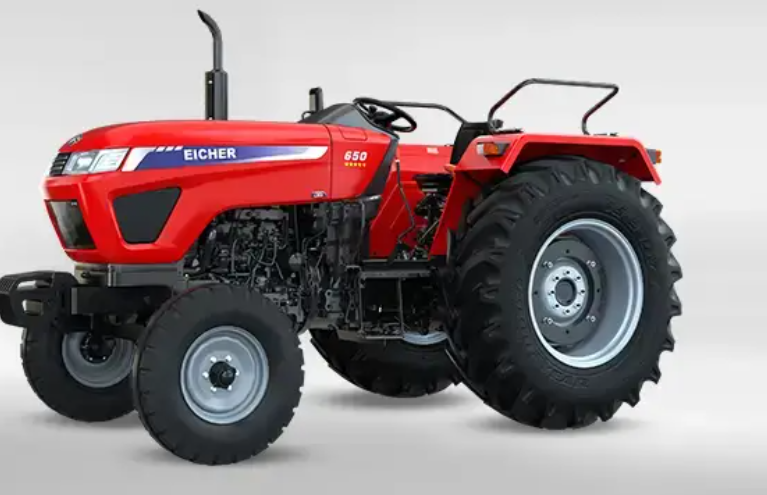

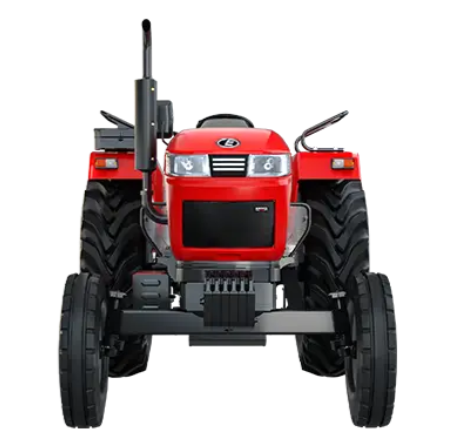

Eicher 650 2WD Prima G3 – 2WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Model |
Eicher 650 2WD Prima G3 |
|
Overall Length |
3,755 mm |
|
Overall Width |
1,910 mm |
|
Overall Height |
2,240 mm |
|
Wheelbase |
2,020 mm |
|
Total Weight |
2,507 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
65 L |
|
Max Speed |
31.36 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
Eicher water-cooled, turbo-charged |
|
Cylinders |
3 |
|
Cubic Capacity |
3,300 cc (3.3L) |
|
Fuel Injection Pump |
Common Rail Direct Injection (CRDi) |
|
Power Range |
44 kW (60 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Side shift, partial synchromesh |
|
Number of Speeds |
8 Forward + 2 Reverse (standard), 12 Forward + 3 Reverse (creeper option) |
|
Forward Speed |
31.36 kmph (with 16.9 x 28 rear tyres) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
16.05 cm x 40.64 cm (7.50 x 16) front, 42.93 cm x 71.12 cm (16.9 x 28) rear |
Components & Features
|
Feature |
Details |
|
iMode Feature |
3 performance modes |
|
PTO Type |
Live, six splined shaft |
|
PTO Speed (Standard) |
540 RPM @ 1944 ERPM |
|
PTO Speed (Option) |
540 RPM @ 1788 ERPM |
|
PTO (Multi Speed & Reverse) |
Standard |
|
Lifting Capacity |
2,100 kgf |
|
Three Point Linkage & Controls |
Draft, position, and response control, links fitted with CAT-2 |
|
Electricals |
12 V 88 Ah battery |
|
Optional Features |
Auxiliary pump with spool valve |
|
Accessories |
Tipping trailer kit, jerry can weight with bumper, drawbar, top link, water bottle holder |
