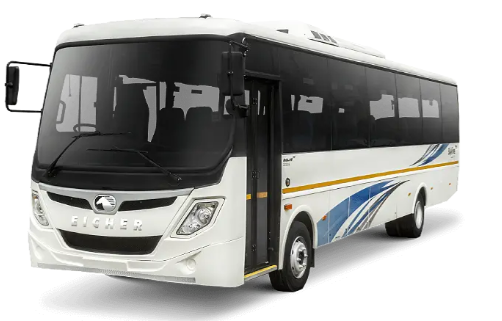

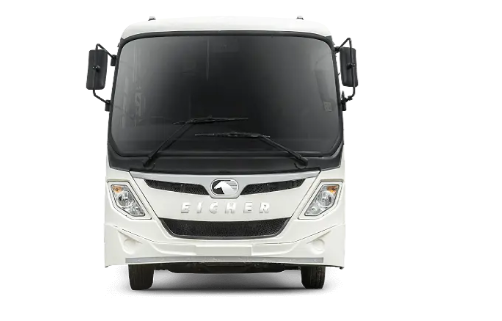

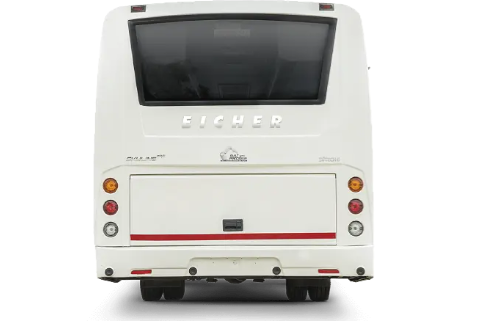

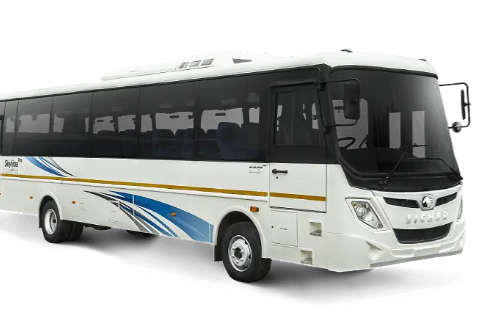

Eicher 6016 R LPO Diesel – Eicher Trucks and Buses School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
6016 R LPO |
|
Wheelbase, mm |
6200 |
|
Overall length, mm |
11765 |
|
Overall width, mm |
2540 |
|
Overall height, mm |
2783 |
|
Ground clearance, mm |
240 |
|
Front overhang, mm |
2205 |
|
Rear overhang, mm |
3360 |
|
Turning circle diameter, m |
23.7 |
|
Engine make |
VEDX5 |
|
Displacement, cc |
5132 |
|
Power |
155 kW @ 2200 Rpm |
|
Torque |
825 Nm @ 1200-1600 Rpm |
|
Clutch diameter, mm |
395 |
|
Transmission make |
ET70S6 |
|
Transmission type |
Synchromesh 6 Speed + 1 Rev |
|
GVW, t |
16.2 |
|
Chassis type |
Domex 650 straight frame |
|
Chassis dimension, mm |
285 x 76 x 6 |
|
Fuel tank capacity, L |
425 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
295/80R22.5-16PR |
|
Suspension |
Weveller - Front, Air - Rear |
|
Steering |
Power steering |
|
Battery |
2x12V, 150Ah |
|
Alternator |
90A |
|
DEF tank capacity, L |
33 |
|
Fuel Type |
Diesel |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Steering Feature |
Cruise control |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
Mbooster+ |
|
Engine Feature |
Intelligent Engine Protection System (EPS) |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
