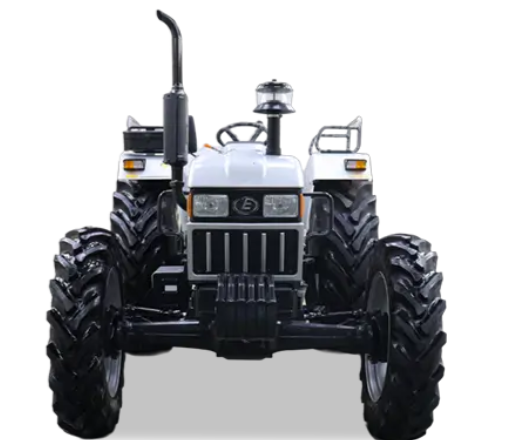

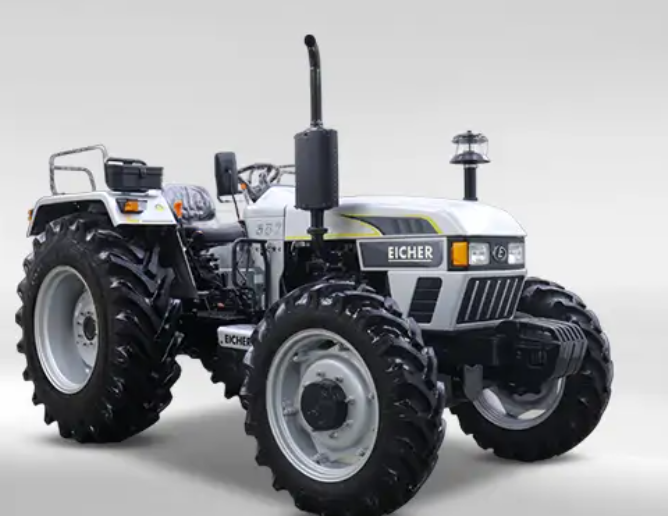

Eicher 557 4WD – 4WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Tractor Model |
Eicher 557 4WD |
|
Vehicle Category |
4WD Tractor |
|
Overall Length |
3800 mm |
|
Overall Width |
1910 mm |
|
Overall Height |
2220 mm |
|
Wheelbase |
2075 mm |
|
Total Weight |
3380 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
48 L |
|
Max Speed |
30.46 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
EICHER / Water cooled |
|
Cylinders |
3 |
|
Cubic Capacity |
3300 cc (3.3L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Dual |
|
Transmission Type |
Side shift, Partial synchromesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Power Range |
36.78 kW (50 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
24.13 cm x 60.96 cm (9.50 x 24) Front, 42.93 cm x 71.12 cm (16.9 x 28) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Six splined shaft |
|
PTO Speed (Standard) |
540 RPM @ 1944 ERPM |
|
PTO Speed (Option) |
540 RPM @ 1788 ERPM |
|
PTO (Multi Speed & Reverse) |
Standard |
|
Lifting Capacity |
2100 kgf |
|
Three Point Linkage & Controls |
Draft, Position and Response control, Links fitted with CAT-II (Combi Ball) |
|
Electricals |
12 V 88 Ah Battery |
|
Optional Features |
Auxiliary pump with spool valve |
|
Accessories |
Tipping trailer kit, Jerry cane weight with Bumper, Drawbar, Mobile charger, Top link, Water bottle holder |
