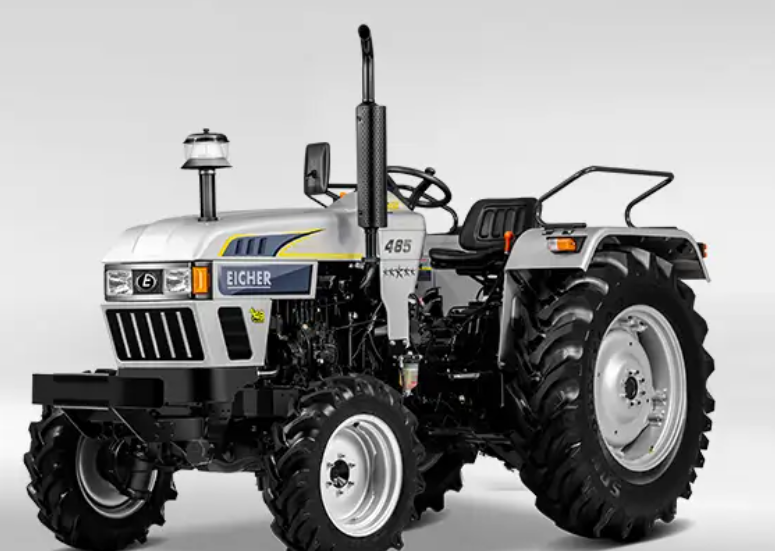

Eicher 485 Super PLUS 4WD – 4WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Model |
Eicher 485 Super PLUS 4WD |
|
Overall Length |
3,775 mm |
|
Overall Width |
1,785 mm |
|
Overall Height |
2,290 mm |
|
Wheelbase |
2,035 mm |
|
Total Weight |
2,236 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
46 L |
|
Max Speed |
32.31 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
Eicher air-cooled |
|
Cylinders |
3 |
|
Cubic Capacity |
2,945 cc (2.95L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
36.04 kW (49 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Side shift, partial constant mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
32.31 kmph (with 14.9 x 28 rear tyres) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
21.08 cm x 50.80 cm (8.3 x 20) front, 37.85 cm x 71.12 cm (14.9 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, six splined shaft |
|
PTO Speed (Standard) |
540 RPM @ 1788 ERPM |
|
PTO (Multi Speed & Reverse) |
Standard |
|
Lifting Capacity |
1,650 kgf |
|
Three Point Linkage & Controls |
Draft, position, and response control, links fitted with CAT-II (Combi Ball) |
|
Electricals |
12 V 75 Ah battery |
|
Optional Features |
Auxiliary pump with spool valve |
|
Accessories |
Tipping trailer kit, bumper, drawbar, mobile charger, top link, water bottle holder |
