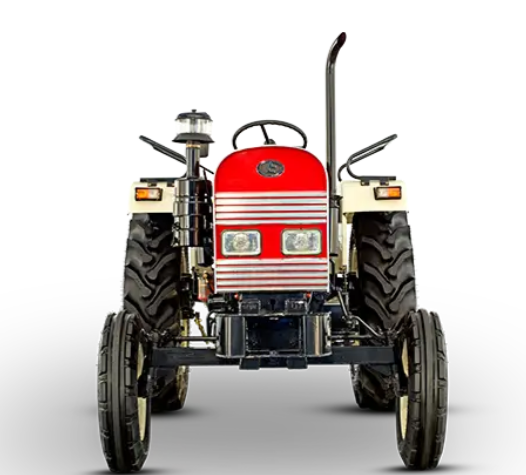

Eicher 242 – 2WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Tractor Model |
Eicher 242 |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
3150 mm |
|
Overall Width |
1650 mm |
|
Overall Height |
2030 mm |
|
Wheelbase |
1880 mm |
|
Total Weight |
1670 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
35 L |
|
Max Speed |
27.61 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
EICHER / Air cooled |
|
Cylinders |
1 |
|
Cubic Capacity |
1557 cc (1.56L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single |
|
Transmission Type |
Center shift, Sliding mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Power Range |
18.39 kW (25 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Sealed dry disc brakes, Option: Oil immersed brakes |
|
Steering Type |
Mechanical Steering, Option: Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
15.24 cm x 40.64 cm (6.0 x 16) Front, 31.51 cm x 71.12 cm (12.4 x 28) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Twenty one splined shaft |
|
PTO Speed (Standard) |
1000 RPM @ 1616 ERPM |
|
PTO (Multi Speed & Reverse) |
No |
|
Lifting Capacity |
1220 kgf |
|
Three Point Linkage & Controls |
Draft, Position and Response control, Links fitted with CAT-2 (Combi Ball) |
|
Electricals |
12 V 88 Ah Battery |
|
Accessories |
Tipping trailer kit, Drawbar, Top link |
