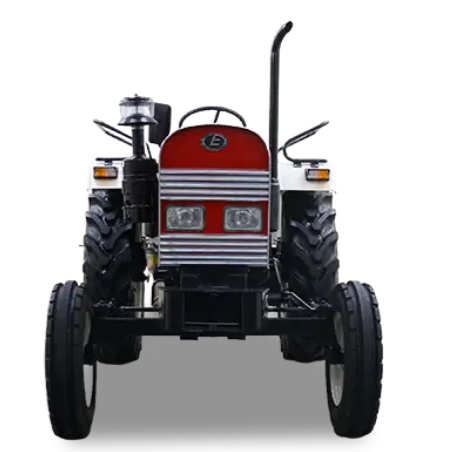

Eicher 241 – 2WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Model |
Eicher 241 |
|
Overall Length |
3,160 mm |
|
Overall Width |
1,640 mm |
|
Overall Height |
2,055 mm |
|
Wheelbase |
1,895 mm |
|
Total Weight |
1,640 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
35 L |
|
Max Speed |
25.48 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
Eicher air-cooled |
|
Cylinders |
1 |
|
Cubic Capacity |
1,557 cc (1.56L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
18.39 kW (25 hp) |
|
Clutch Type |
Single |
|
Transmission Type |
Center shift, sliding mesh |
|
Number of Speeds |
5 Forward + 1 Reverse |
|
Forward Speed |
25.48 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Drum Brake (standard); Dry disc brake (option); Oil immersed brakes (option) |
|
Steering Type |
Mechanical Steering (standard); Power Steering (option) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
15.24 cm x 40.64 cm (6.0 x 16) front, 31.51 cm x 71.12 cm (12.4 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, six splined shaft |
|
PTO Speed (Standard) |
540 RPM @ 1715 ERPM |
|
PTO (Multi Speed & Reverse) |
No |
|
Lifting Capacity |
960 kgf |
|
Three Point Linkage & Controls |
Draft, position, and response control, links fitted with CAT-2 (Combi Ball) |
|
Electricals |
12 V 88 Ah battery |
|
Accessories |
Tipping trailer kit, drawbar, top link |
