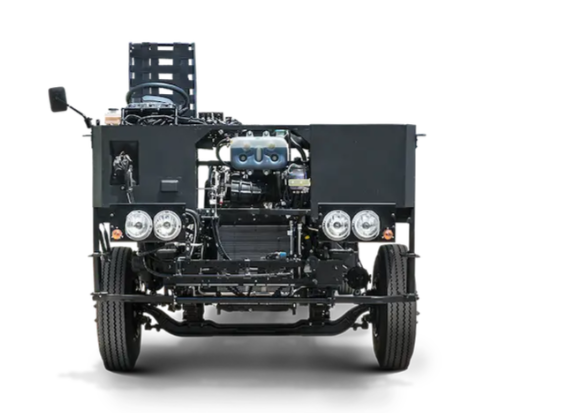

Eicher 2112 M AC Diesel – Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
2112 M AC Chassis |
|
Wheelbase |
5330 mm |
|
Overall Length |
9856 mm |
|
Overall Width |
2413 mm |
|
Overall Height |
2785 mm |
|
Ground Clearance |
232 mm |
|
Front Overhang |
1370 mm |
|
Rear Overhang |
3156 mm |
|
Turning Circle Diameter |
19.4 m |
|
Fuel Tank Capacity |
190 litres |
|
DEF Tank Capacity |
27 litres |
|
Fuel Type |
Diesel |
|
Application |
Chassis |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex 650 |
|
Chassis dimension |
210 x 76 x 6 mm |
|
Engine Make |
E494 |
|
Displacement |
3770 cc |
|
Power |
120 kW @ 2600 Rpm |
|
Torque |
500 Nm @ 1200-1800 Rpm |
|
Clutch |
330 mm |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Rev) |
|
GVW |
13.1 t |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Wevellar Suspension |
|
Suspension Rear |
Wevellar Suspension |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
9R20-16PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
