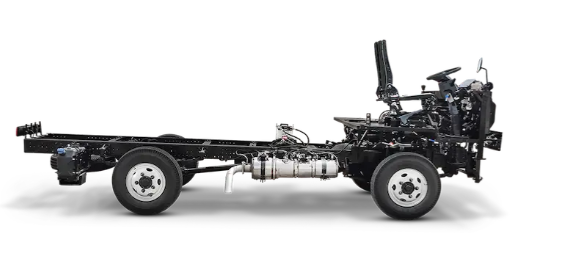

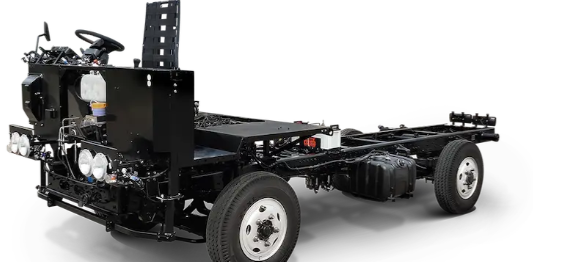

Eicher 2050 C Chassis – Diesel Chassis with E366 Engine
Specifications
|
Specification |
Details |
|
Chassis Model |
2050 C Chassis |
|
Wheelbase, mm |
2850 |
|
Overall Length, mm |
5375 |
|
Overall Width, mm |
2043 |
|
Overall Height, mm |
2480 |
|
Ground Clearance, mm |
183 |
|
Front Overhang, mm |
1000 |
|
Rear Overhang, mm |
1525 |
|
Turning Circle Diameter, m |
11.2 |
|
Engine Make |
E366 |
|
Displacement, cc |
1999 |
|
Power |
75 kW @ 3200 RPM |
|
Torque |
285 Nm @ 1250 – 2500 RPM |
|
Clutch Diameter, mm |
280 |
|
Transmission Make |
ET30S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Reverse) |
|
GVW |
5.6 t |
|
Chassis Type |
BSK 46 |
|
Chassis C Frame Dimensions, mm |
180 x 60 x 5 |
|
Fuel Tank Capacity, L |
60 |
|
DEF Tank Capacity, L |
19 |
|
Brakes |
Hydraulic with Disc |
|
Tyre Size |
7.50 x 16 - 16 PR |
|
Front Suspension |
Semi Elliptic with ARB |
|
Rear Suspension |
Semi Elliptic with ARB |
|
Steering Type |
Power Steering |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Efficiency Feature |
MBooster+ |
|
Efficiency Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live Telematics System |
|
Steering Feature |
Adjustable Steering Column |
|
Seating Feature |
Seat Height Adjustment |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat Belts |
|
Safety Feature |
Emergency Exit |
|
Safety Feature |
Passenger Signage and Stop Arm |
|
Safety Feature |
First-Aid Kit |
|
Comfort Feature |
Air Conditioning (AC) Unit |
