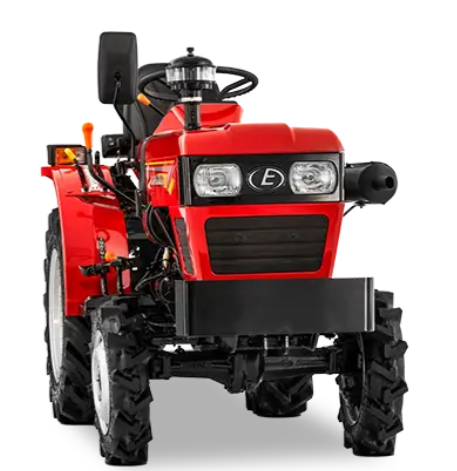

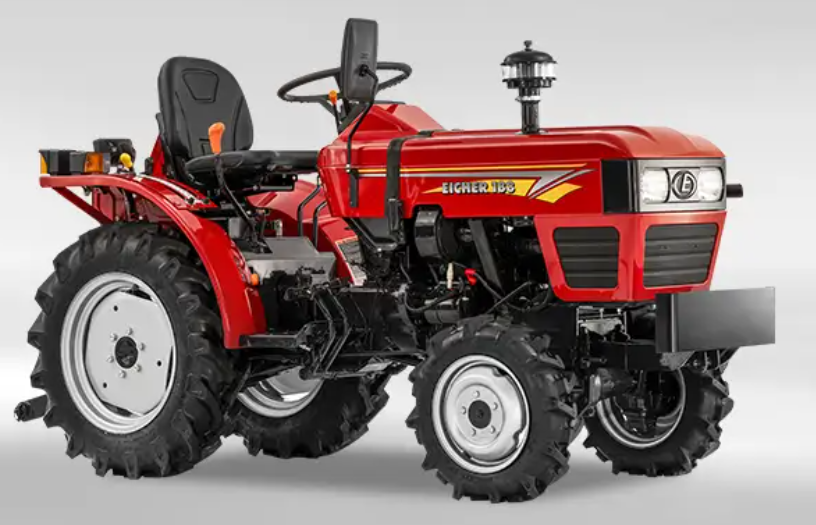

Eicher 188 4WD – 4WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Tractor Model |
Eicher 188 4WD |
|
Vehicle Category |
4WD Tractor |
|
Overall Length |
2585 mm |
|
Overall Width |
980 mm |
|
Overall Height |
1305 mm |
|
Wheelbase |
1420 mm |
|
Total Weight |
850 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
29 L |
|
Max Speed |
21.65 kmph |
|
Power Range |
13.24 kW (18 hp) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
EICHER / Air cooled |
|
Cylinders |
1 |
|
Cubic Capacity |
825 cc (0.82L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single |
|
Transmission Type |
Side shift, Sliding Mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil immersed brakes |
|
Steering Type |
Mechanical Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
12.7 cm x 30.48 cm (5.0 x 12) Front, 20.32 cm x 45.72 cm (8 x 18) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Six splined shaft, Two-speed PTO |
|
PTO Speed (Standard) |
540 RPM @ 2179 ERPM, 540 RPM @ 1476 ERPM |
|
PTO (Multi Speed & Reverse) |
No |
|
Lifting Capacity |
700 kgf |
|
Three Point Linkage & Controls |
Draft, Position and Response control, Links fitted with CAT-II (Combi Ball) |
|
Electricals |
12 V 75 Ah Battery |
|
Accessories |
Tipping trailer kit, Drawbar, Top link |
