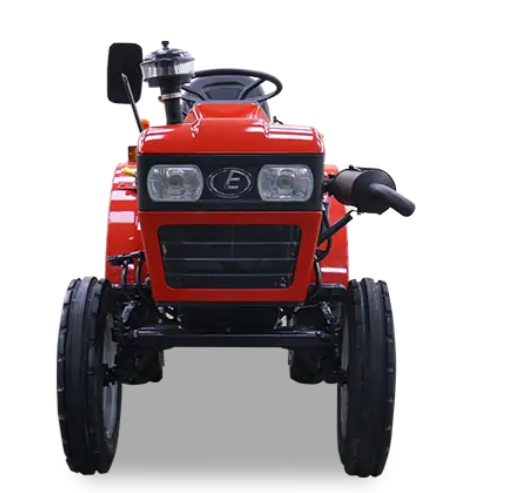

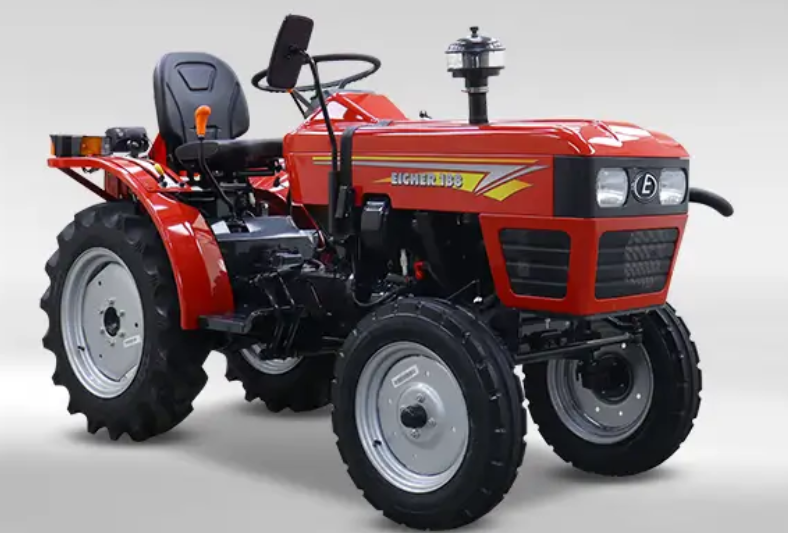

Eicher 188 – 2WD Agricultural Tractor by Eicher Tractors
Specifications
|
Specification |
Details |
|
Model |
Eicher 188 |
|
Overall Length |
2,590 mm |
|
Overall Width |
1,075 mm |
|
Overall Height |
1,275 mm |
|
Wheelbase |
1,410 mm |
|
Total Weight |
806 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
29 L |
|
Max Speed |
21.65 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
Eicher air-cooled |
|
Cylinders |
1 |
|
Cubic Capacity |
825 cc (0.82L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
13.24 kW (18 hp) |
|
Clutch Type |
Single |
|
Transmission Type |
Side shift, sliding mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
21.65 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil immersed brakes |
|
Steering Type |
Mechanical Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
13.34 cm x 15.56 cm (5.25 x 14) front, 20.32 cm x 45.72 cm (8 x 18) rear (standard); 12.07 cm x 15.56 cm (4.75 x 14) front, 20.32 cm x 45.72 cm (8 x 18) rear (option) |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, six splined shaft, two-speed PTO |
|
PTO Speed (Standard) |
540 RPM @ 2179 ERPM |
|
PTO Speed (Additional) |
540 RPM @ 1476 ERPM |
|
PTO (Multi Speed & Reverse) |
No |
|
Lifting Capacity |
700 kgf |
|
Three Point Linkage & Controls |
Draft, position, and response control, links fitted with CAT-2 (Combi Ball) |
|
Electricals |
12 V 75 Ah battery |
|
Accessories |
Tipping trailer kit, drawbar, top link |
