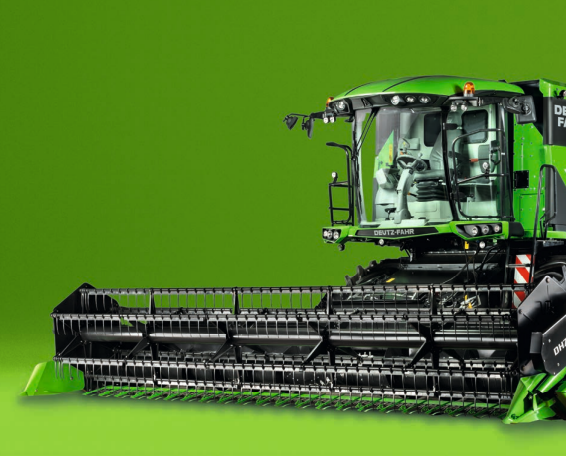

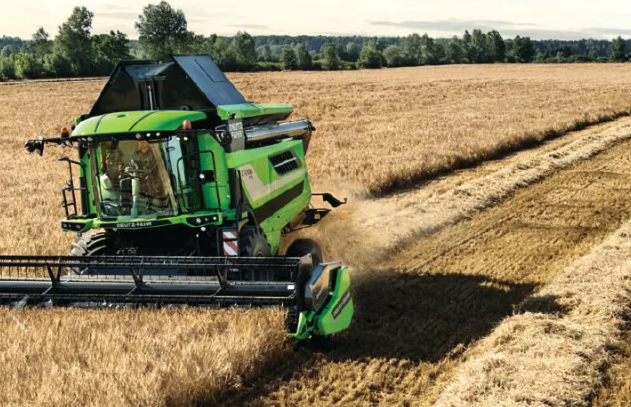

DEUTZ-FAHR Extra Power C7206 TS – 381 HP Combine Harvester with Turbo Separator
Specifications
|
Specification |
Details |
|
Model |
DEUTZ-FAHR Extra Power C7206 TS |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, rice, soybeans, maize, rapeseed, sunflowers |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM936, 6 cylinders, 7.7 L, Stage V, EGR, DPF, SCR, common rail, 4 valves |
|
Gross Horsepower |
381 HP (280 kW) max (ECE R 120) with overboost |
|
Transmission Type |
Hydrostatic transmission, 4-speed gearbox, 0–25 km/h forward, 0–14 km/h reverse, pedal-operated hydraulic brake, mechanical parking brake |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Pedal-operated hydraulic brake, usable as independent brake, mechanical parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
620/75 R30 168 A8, 650/75 R32 167 A8, 800/65 R32 STR 172 A8, 710/75 R34 178 A8 |
|
Steering Axle Tyres |
405/70 R20 155 A2, 500/60-22.5 10 PR, 600/50 R22.5 165 A8, 540/65 R24 146 D |
|
Tracks |
Rubber track with 4 rollers undercarriage, 915 mm or 716 mm |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
600 mm threshing drum, 1521 mm width, 8 rasp bars, 420–1250 rpm (210–625 rpm with optional reducer), 121° concave wrap, 1.13 m² concave area, multi-segment concave, electric adjustment, de-awning plates, maize/rice conversion kits, Turbo Separator (590 mm, 775/410 rpm, 0.97 m²) |
|
Secondary Separation |
6 straw walkers, 4 steps, open, 7.60 m² shaking surface, 8.80 m² total separation area, electronic speed control |
|
Cleaning System |
High-performance crossflow fan, 44 vanes, double step pre-sieve (optional), DGR system, 6.32 m² sieve area, opposed action sieves, electric sieve adjustment (optional), sieve box illumination |
|
Grain Tank |
9500 L, 90 L/s unloading rate, 4.30 m discharge height, 5.00/5.60/6.00 m unloading pipe, dual inspection windows, interior light, grain sample hatch |
|
Straw Management |
Straw chopper (manually or electrically adjustable spread width), chaff spreader with two 4-paddle rotors |
|
Front Attachments |
Cereal headers (4.80–7.20 m), VARICROP headers (5.00–7.50 m), rapeseed/sunflower conversion kits, SCHUMACHER EASY CUT II (1220 cuts/min), AutoControl, hydraulic multicoupler, trailer tow hitch |
|
Cab |
Commander Cab V, 7” LED touchscreen Commander Control, Commander Stick, air conditioning, adjustable seat, 6 work lights, 2 rear lights, electric mirrors, camera visibility pack (optional) |
|
Technology |
Agrosky, ISOBUS, yield/moisture monitoring, agrirouter, BTM/CTM telemetry, CCM (Combine Control Management) |
|
Fuel Tank Capacity |
750 L diesel, 76 L AdBlue |
|
Width |
3.296 m (without cutter bar), 5.124–7.563 m (with cutter bar) |
|
Track Width |
2670 mm (front), 2343 mm (rear), 915/716 mm (tracks) |
|
Wheelbase |
3890 mm |
|
Length |
9240 mm (without cutter bar), 10890 mm (with cutter bar, crop dividers folded) |
|
Max Height |
4560 mm (to lower edge of grain tank discharge pipe, standard tyres), 3990 mm (grain tank height) |
|
Weight |
17000 kg (without header) |
