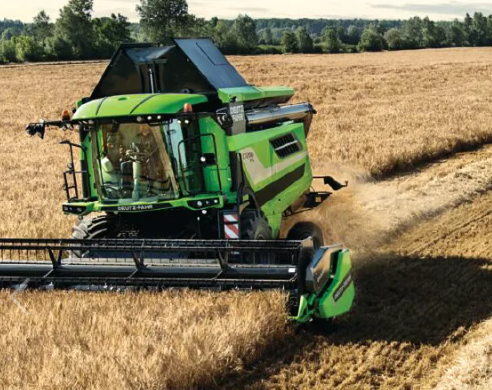

DEUTZ-FAHR C9305 TS – 353 HP Combine Harvester with Maxi-Crop System
Specifications
|
Specification |
Details |
|
Model |
DEUTZ-FAHR C9305 TS |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, rice, soybeans, maize, beans, peas, rapeseed, sunflowers, alfalfa |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM936, 6 cylinders, 7.7 L, Stage V, EGR, DPF, SCR, common rail, 24 valves, electronic control |
|
Gross Horsepower |
353 HP (260 kW) max (ECE R 120) |
|
Transmission Type |
Hydrostatic transmission, 4-speed gearbox, 0–30 km/h forward, 0–14 km/h reverse, cruise control, pedal-operated hydraulic brake, mechanical parking brake |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Pedal-operated hydraulic brake, usable as independent brake, mechanical parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
620/75 R30 168 A8, 800/65 R32 STR 172 A8, 710/75 R34 178 A8 |
|
Steering Axle Tyres |
405/70 R20 155 A2, 500/60-22.5 10 PR, 600/50 R22.5 165 A8, 540/65 R24 146 D |
|
Tracks |
Rubber track with 4 rollers undercarriage, 915 mm or 716 mm |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
Maxi-Crop system, 600 mm threshing drum, 1270 mm width, 8 bars, 420–1250 rpm (210–625 rpm with optional reducer), 121° concave wrap, 0.95 m² concave area, multi-segment concave, electric adjustment, maize/rice conversion kits |
|
Secondary Separation |
5 straw walkers, 4 steps, open bottom, 5.80 m² straw walker area, 7.56 m² total separation area, electronic speed control |
|
Cleaning System |
High-performance crossflow fan, double cascade preparation pan, DGR system, 5.28 m² sieve area, opposed action sieves, sieve box illumination |
|
Grain Tank |
10500 L, 120 L/s unloading rate, 6 m unloading pipe, dual inspection windows, interior light, camera |
|
Straw Management |
Straw chopper (manually or electrically adjustable spread width), chaff spreader with conveyor |
|

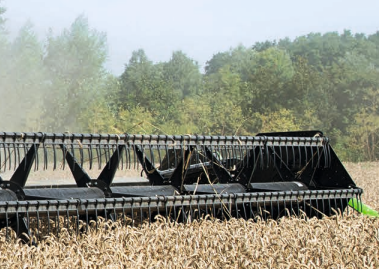

Front Attachments |
Cereal headers (4.20–9.00 m), VARICROP headers (5.00–7.50 m), rapeseed/sunflower conversion kits, SCHUMACHER EASY CUT II, AutoControl, hydraulic multicoupler, trailer tow hitch |
|
Cab |
Commander Cab VI, 8” iMonitor, Commander Stick, 21 L fridge, 10 work lights, 3 cameras (optional), electric mirrors |
|
Technology |
Agrosky, ISOBUS, yield/moisture monitoring, agrirouter, BTM/CTM telemetry |
|
Fuel Tank Capacity |
750 L diesel, 76 L AdBlue |
|
Width |
3.296 m (without cutter bar), 5.124–9.622 m (with cutter bar) |
|
Track Width |
2630 mm (front), 2393 mm (rear), 915/716 mm (tracks) |
|
Length |
9240 mm (without cutter bar), 10890 mm (with cutter bar, crop dividers folded) |
|
Max Height |
4557 mm (to lower edge of grain tank discharge pipe, standard tyres), 3990 mm (grain tank height) |
|
Weight |
16900 kg (without header) |
