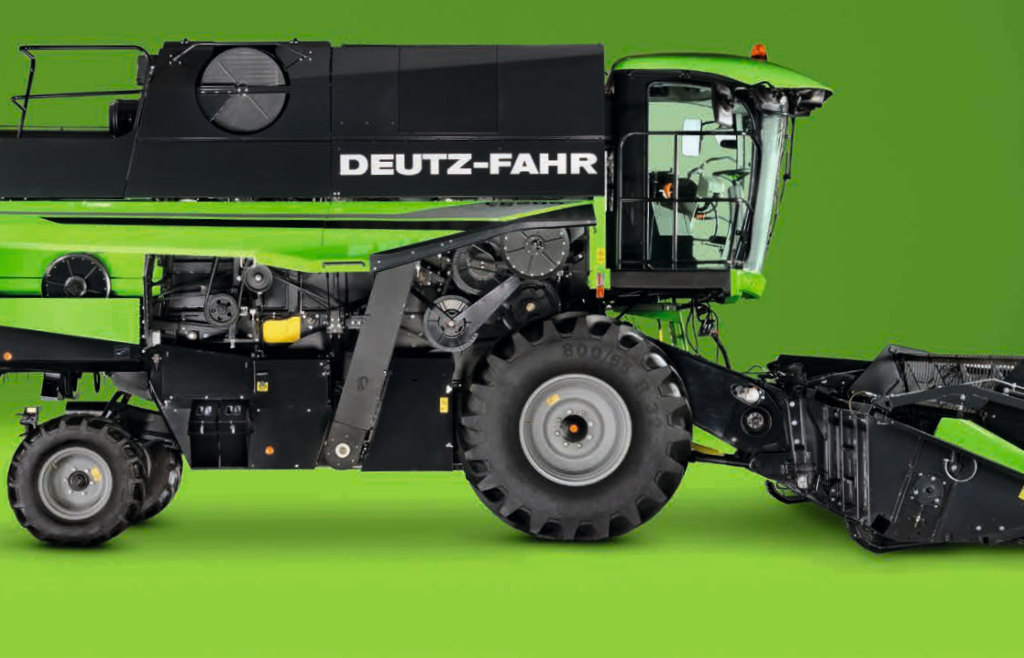

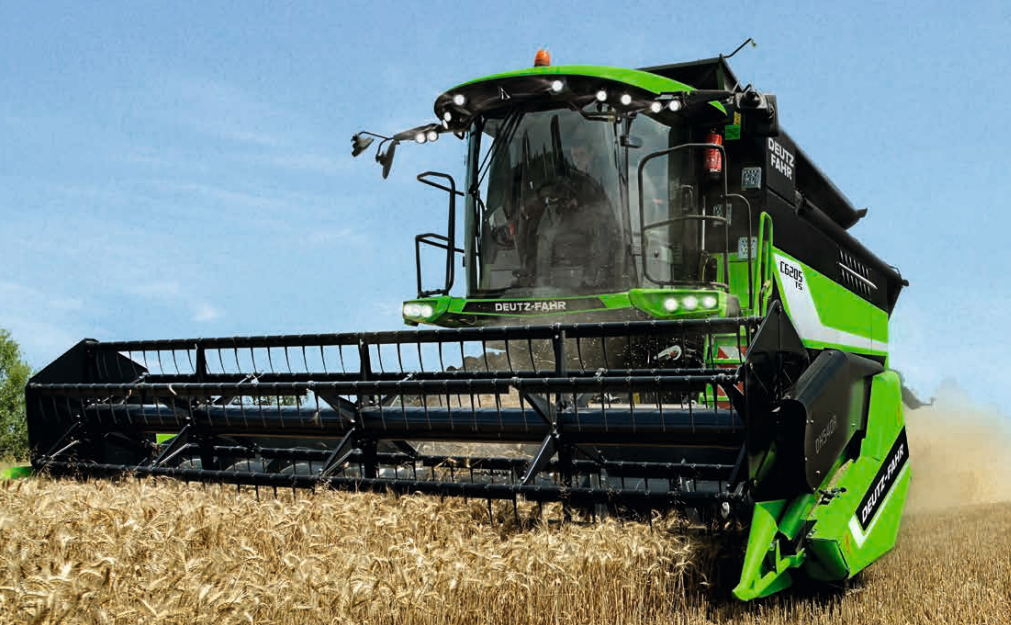

DEUTZ-FAHR C6205 TS – 250 HP Combine Harvester with Turbo Separator
Specifications
|
Specification |
Details |
|
Model |
DEUTZ-FAHR C6205 TS |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, rice, soybeans, maize, rapeseed, sunflowers |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz TCD L6 TT4FI, 6 cylinders, 6.1 L, Stage V, common rail, 24 valves, electronic control, DOC, DPF, SCR |
|
Gross Horsepower |
250 HP (184 kW) max (ECE R 120) |
|
Transmission Type |
Hydrostatic transmission, 3-speed gearbox (105 cc), 0–26 km/h forward, 0–14 km/h reverse, pedal-operated hydraulic brake, mechanical parking brake |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Pedal-operated hydraulic brake, usable as independent brake, mechanical parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
620/75 R30 168 A8, 650/75 R32 167 A8, 800/65 R32 STR 172 A8 |
|
Steering Axle Tyres |
320/80 R18, 405/70 R20 155 A2 |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
600 mm threshing drum, 1270 mm width, 8 rasp bars, 420–1250 rpm (210–625 rpm with optional reducer), 121° concave wrap, 0.95 m² concave area, multi-segment concave, manual adjustment, de-awning plates, maize conversion kit, Turbo Separator (590 mm, 775/410 rpm, 0.81 m², 5-position mechanical adjustment) |
|
Secondary Separation |
5 straw walkers, 4 steps, closed, 4.60 m² shaking surface, 6.36 m² total separation area, ball bearing mounts |
|
Cleaning System |
High-performance crossflow fan (400 mm, 44 blades), pre-sieve, DGR system with two independent return channels, 4.25 m² sieve area, opposed action sieves, sieve box illumination |
|
Grain Tank |
7000 L, 75 L/s unloading rate, 3.45 m discharge height, dual inspection windows, interior light, grain sample outlet |
|
Straw Management |
Straw chopper with manually adjustable spread width, chaff spreader with conveyor |
|
Front Attachments |
Cereal headers (4.20–6.30 m), VARICROP headers (5.00–5.50 m), rapeseed/sunflower conversion kits, SCHUMACHER EASY CUT II (1220 cuts/min), AutoControl, hydraulic multicoupler, trailer tow hitch |
|
Cab |
Commander Cab EVO II, Commander Stick, CCM (Combine Control Management), air conditioning, adjustable seat, 6 cab work lights, 1 grain tank light, 2 rear lights, electric mirrors, camera visibility pack (optional), xenon work lights (optional) |
|
Technology |
CCM (Combine Control Management), electronic control of returns level and overload |
|
Fuel Tank Capacity |
450 L diesel, 53 L AdBlue |
|
Width |
3.000 m (without cutter bar), 4.515–6.648 m (with cutter bar) |
|
Track Width |
2670 mm (front), 2355 mm (rear) |
|
Wheelbase |
3892 mm |
|
Length |
8770 mm (without cutter bar), 10620 mm (with cutter bar, crop dividers folded) |
|
Max Height |
3450 mm (to lower edge of grain tank discharge pipe, standard tyres), 3935 mm (grain tank height) |
|
Weight |
14500 kg (without header) |
