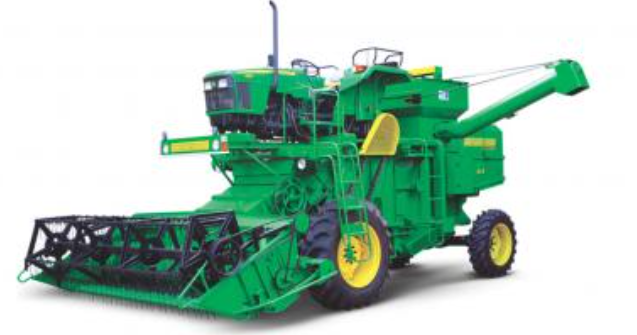

Dasmesh 912 (4x4) Tractor Driven Combine Harvester – Multi-Crop Harvester
 Tractor Driven Combine Harvester 1.png)
 Tractor Driven Combine Harvester 2.png)
Specifications
|
Specification |
Details |
|
Model |
Dasmesh 912 (4x4) |
|
Vehicle Category |
Tractor-Driven Combine Harvester |
|
Fuel Type |
Diesel (via host tractor) |
|
Application |
paddy, wheat |
Frame & Drivetrain
|
Specification |
Details |
|
Tractor Compatibility |
40–75 HP tractors |
|
Engine Power |
40–75 HP (29.83–55.93 kW) |
|
Drive Type |
4WD (via host tractor) |
|
Transmission Type |
Heavy-duty gearbox |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
16.9 x 30, 12 PR |
|
Rear Wheels |
11.2 x 24, 8 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
1041 mm width |
|
Cutter Bar Assembly |
3657 mm (12 feet) width, cutting height 55–1000 mm |
|
Straw Walker |
5 straw walkers |
|
Cutting Capacity |
2 acres/hour |
|
Features |
No grain loss, no grain breakage, crystal headlights, power steering, heavy-duty gearbox, safety guard, low maintenance, chain-driven, split-type pulleys, ground shafts, railing for easy tractor mounting, right-hand side operating levers |
|
Ground Clearance |
380 mm |
