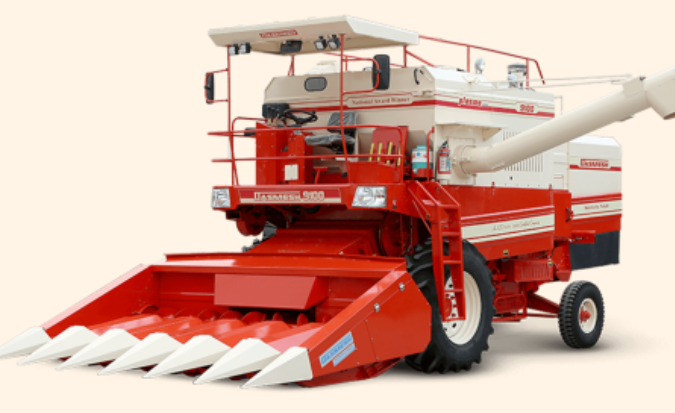

Dasmesh 9100 Maize Self Propelled Combine Harvester – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
Dasmesh 9100 Maize |
|
Vehicle Category |
Self-Propelled Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Maize, paddy, wheat, soybean, sunflower |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Ashok Leyland H6ETIC3RD22 BS-III or Kirloskar, 6-cylinder, four-stroke, water-cooled, direct injection |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty high-speed single gearbox |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Disc brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
18.4-30, 12 PR/14 PR |
|
Rear Wheels |
9.00-16, 16 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
51" (1295 mm) width |
|

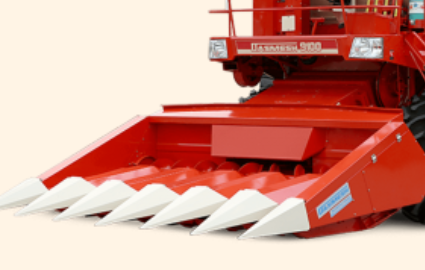

Cutter Bar Assembly |
4300 mm (14 feet) width, cutting height 55–120 mm, pro knife type cutter bar drive |
|
Threshing System |
Thresher width: 1257 mm, diameter: 606 mm, speed range: 562–960 RPM; Concave width: 1257 mm, clearance for wheat: 18–30 mm (front), 7–12 mm (rear), clearance for paddy: 8–46 mm (front), 4–16 mm (rear), heavy-duty dry type clutch plate |
|
Straw Walker |
5 straw walkers |
|
Fuel Tank |
360 L |
|
Cutting Capacity |
Paddy: 3.0 acres/hour; Wheat: 4.5 acres/hour; Maize: 2.0 acres/hour |
|
Features |
No grain loss, no grain breakage, crystal headlights, power steering, low maintenance, sensor for thresher RPM, adjustable front ladder, hydraulic auger system (optional), AC cabin (optional), cutter bar dust remover blower |
|
Width |
3130 mm (transportation), 4740 mm (working) |
|
Length |
8300 mm (transportation and working) |
|
Max Height |
3748 mm (transportation and working) |
|
Weight |
9125 kg (approx.) |
|
Ground Clearance |
380 mm |
