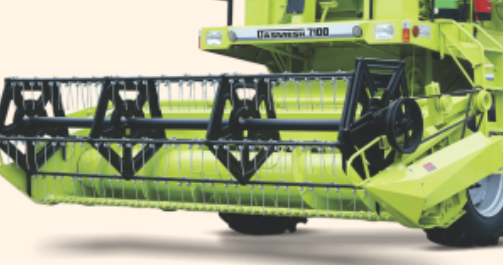

Dasmesh 7100 Self Propelled Combine Harvester – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
Dasmesh 7100 |
|
Fuel Type |
Diesel |
|
Application |
Paddy, wheat |
|
Vehicle Category |
Self-Propelled Combine Harvester |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Ashok Leyland ALHT 4CTIC3, 4-cylinder, water-cooled |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty gearbox, single heavy-duty dry clutch (310 mm diameter) |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
16.9-28, 12 PR |
|
Rear Wheels |
7.50-16, 16 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
41" (1041 mm) width |
|
Cutter Bar Assembly |
3657 mm (12 feet) width, cutting height 50–1250 mm |
|
Threshing System |
Thresher width: 970 mm (wheat), 990 mm (paddy); Diameter: 585 mm (wheat), 592 mm (paddy); Speed range: 680–870 RPM; Concave width: 1025 mm; Clearance for wheat: 21.5–37.4 mm (front), 12.5–17.6 mm (rear); Clearance for paddy: 11.8–35.7 mm (front), 20.0–21.5 mm (rear) |
|
Cleaning Sieves |
Top sieve: 1.61 m²; Bottom sieve: 1.05 m² |
|
Straw Walker |
5 straw walkers, 5 steps |
|
Grain Tank Capacity |
1400 kg (paddy), 1600 kg (wheat) |
|
Fuel Tank |
270 L |
|
Cutting Capacity |
Wheat: 3 acres/hour; Paddy: 2 acres/hour |
|
Features |
No grain loss, no grain breakage, power steering, heavy-duty gearbox, low maintenance |
|
Width |
2960 mm (transportation), 3657 mm (working) |
|
Length |
11040 mm (transportation), 7690 mm (working) |
|
Max Height |
3470 mm (transportation and working) |
|
Weight |
6992 kg (transportation), 6415 kg (working) |
|
Ground Clearance |
380 mm |
