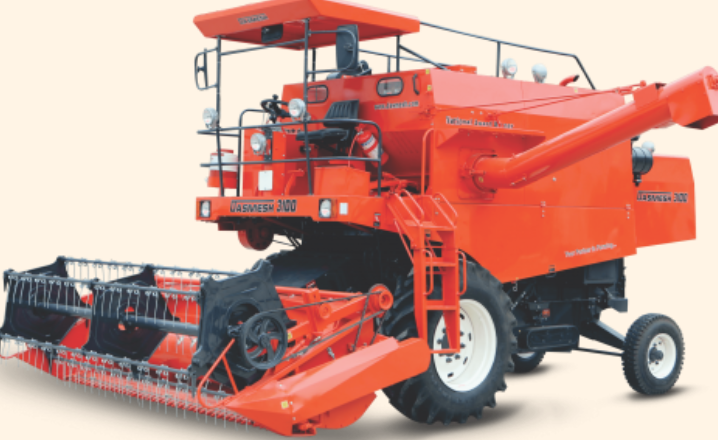

Dasmesh 3100 9 Feet Self Propelled Mini Combine Harvester – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
Dasmesh 3100 9 Feet |
|
Fuel Type |
Diesel |
|
Application |
Paddy, wheat |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Ashok Leyland or Kirloskar H6ETIC3RD22 BS-III, four-stroke, water-cooled, direct injection diesel |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty high-speed single gearbox, heavy-duty dry clutch plate |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
14.9x28, 12 PR |
|
Rear Wheels |
9.00-16 |
Components & Features
|
Specification |
Details |
|
Chassis |
1041 mm width |
|

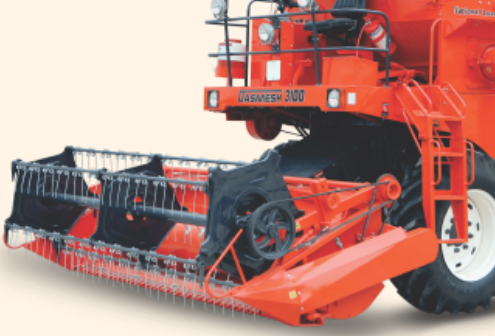

Cutter Bar Assembly |
2743.2 mm (9 feet) width, cutting height 30–1290 mm |
|
Threshing System |
Thresher width: 1257 mm or 887 mm (likely model-specific variants), diameter: 606 mm, speed range: 562–960 RPM (680–785 RPM @ 1800–1850 RPM engine speed); Concave width: 1270 mm, clearance for wheat: 8–46 mm (front), 7–12 mm (rear), clearance for paddy: 13 mm (front), 17 mm (rear) or 32 mm (front), 40 mm (rear), heavy-duty dry type clutch plate |
|
Cleaning Sieves |
Top sieve: 1.076 m²; Bottom sieve: 0.804 m² |
|
Straw Walker |
5 straw walkers |
|
Grain Tank Capacity |
900 kg (paddy), 1000 kg (wheat) |
|
Fuel Tank |
360 L |
|
Cutting Capacity |
Wheat: 1.5 acres/hour; Paddy: 1.0 acre/hour |
|
Features |
No grain loss, no grain breakage, crystal headlights, power steering, heavy-duty gearbox, low maintenance |
|
Width |
3130 mm (transportation), 4740 mm (working) |
|
Length |
12270 mm (transportation), 8300 mm (working) |
|
Max Height |
3748 mm (transportation), 3170 mm (working) |
