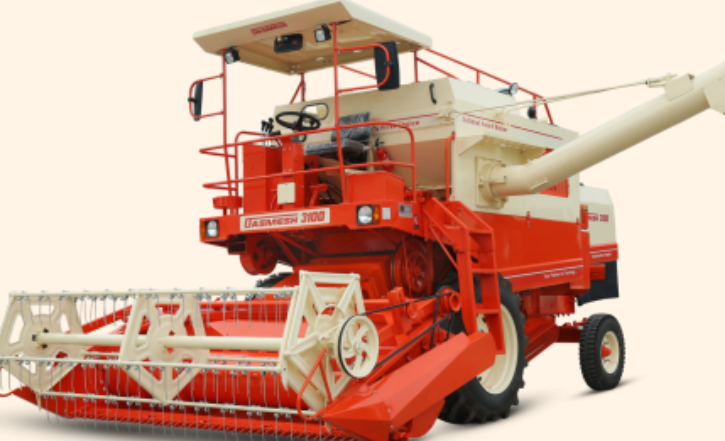

Dasmesh 3100 10 Feet Mini Self Combine Harvester – 76 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
Dasmesh 3100 10 Feet |
|
Vehicle Category |
Mini Self-Propelled Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy, wheat |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
ALU W04D, 4-cylinder, water-cooled, dry air cleaner |
|
Gross Horsepower |
76 HP @ 2200 RPM |
|
Transmission Type |
3 forward, 1 reverse (double lever), single heavy-duty dry clutch (310 mm diameter) |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
14.9x28, 12 PR |
|
Rear Wheels |
7.50x16, 8 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
36" (914.4 mm) width |
|

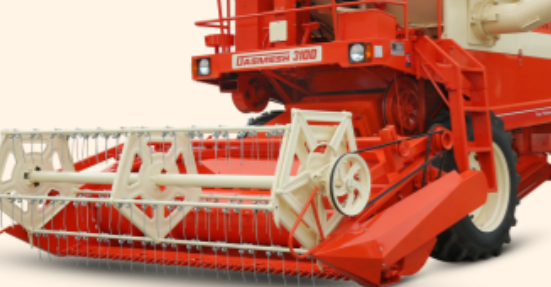

Cutter Bar Assembly |
3048 mm (10 feet) width, cutting height 30–1290 mm |
|
Threshing System |
Thresher width: 887 mm; Diameter: 510 mm; Speed range: 680–870 RPM @ 1850 RPM engine speed; Concave width: 895 mm; Clearance for wheat: 13 mm (front), 17 mm (rear); Clearance for paddy: 32 mm (front), 40 mm (rear) |
|
Cleaning Sieves |
Top sieve: 1.120 m²; Bottom sieve: 0.960 m² |
|
Straw Walker |
4 straw walkers |
|
Grain Tank Capacity |
1000 kg (paddy), 1100 kg (wheat) |
|
Fuel Tank |
200 L |
|
Cutting Capacity |
Wheat: 1.75 acres/hour; Paddy: 1.25 acres/hour |
|
Width |
2530 mm (transportation), 3400 mm (working) |
|
Length |
9775 mm (transportation), 6960 mm (working) |
|
Max Height |
3170 mm (transportation and working) |
