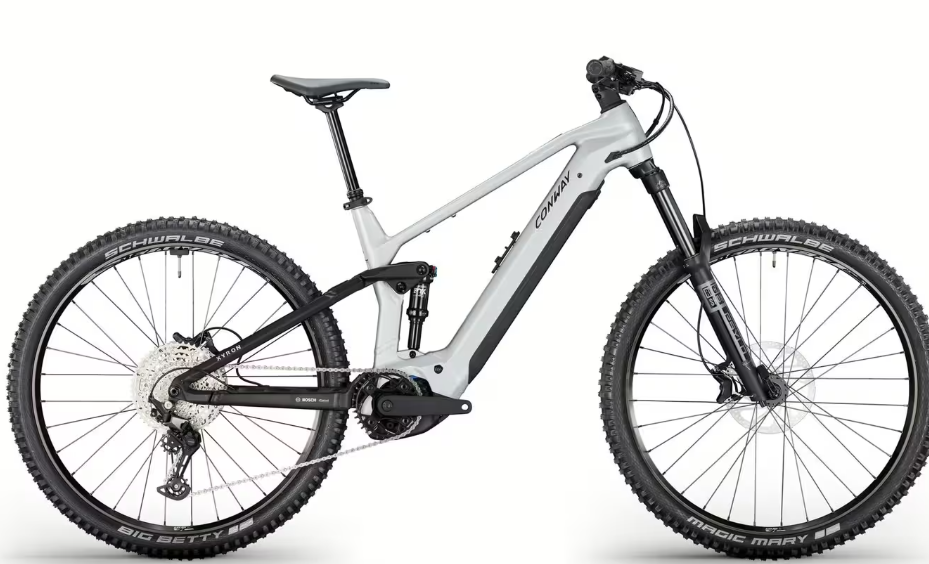

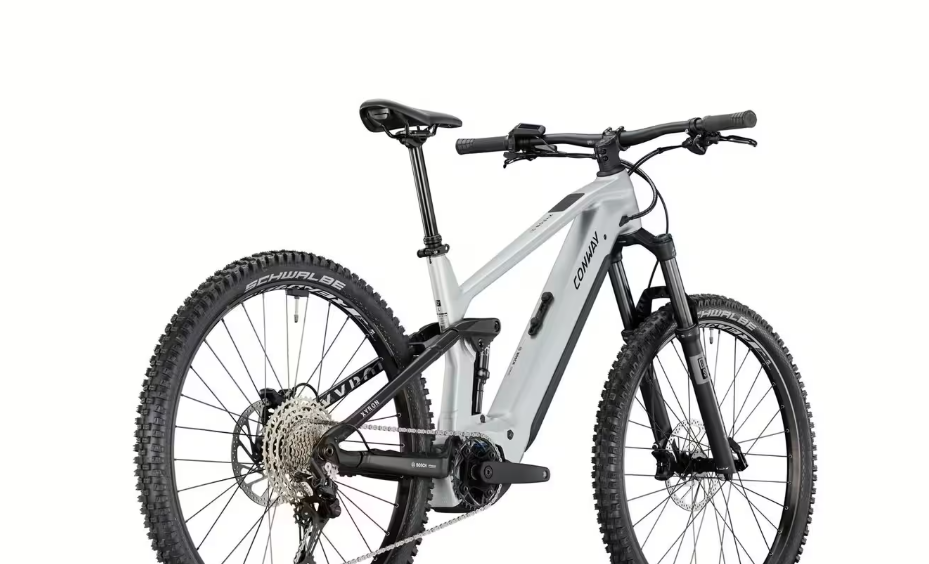

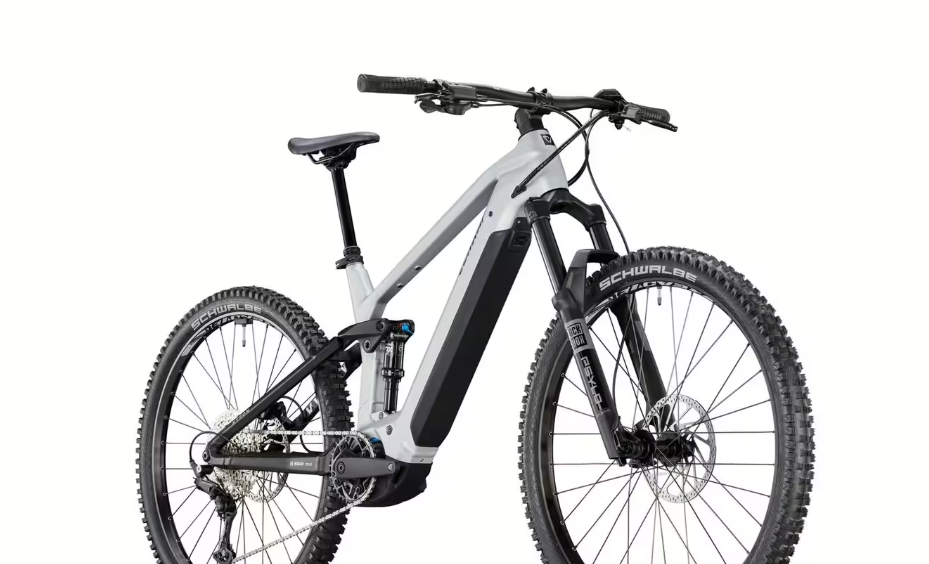

2025 Conway Xyron ST 4.0 Full Suspension – E-Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Xyron ST 4.0 |
|
Vehicle Category |
E-Mountain Bike |
|
Application |
Trail riding, mountain biking |
|
Starting Price (2025) |
€4,499.95 |
|
Color Options |
Alu Raw Matt / Black |
|
Sizes |
S (39 cm), M (42 cm), L (44 cm), XL (46 cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

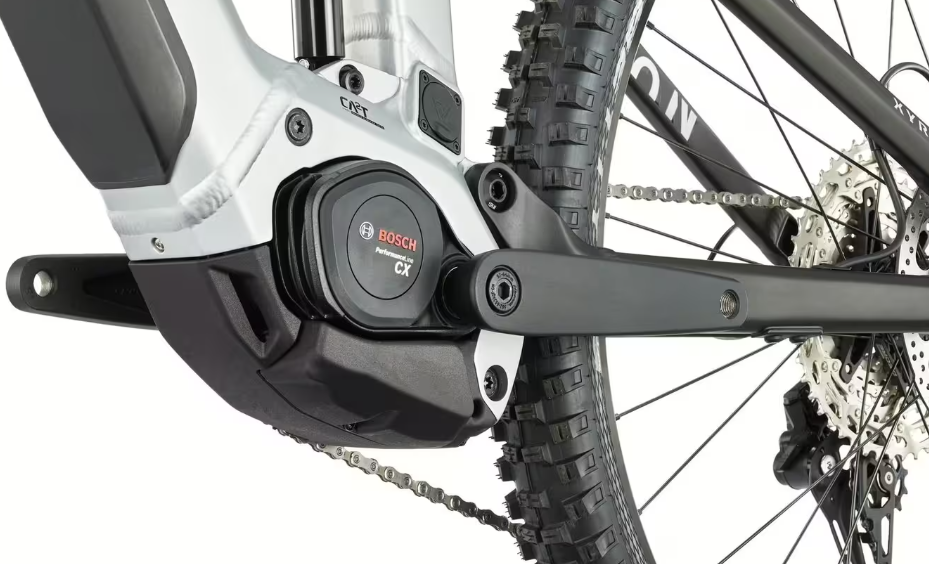

Intube Bosch, Gen. 4, BES3, Aluminium |
|
Fork |
ROCKSHOX "Psylo Silver RC", 150 mm, Tapered, 15 x 110 mm, Maxle Lite Thru Axle, 44 mm offset |
|
Rear Shock |

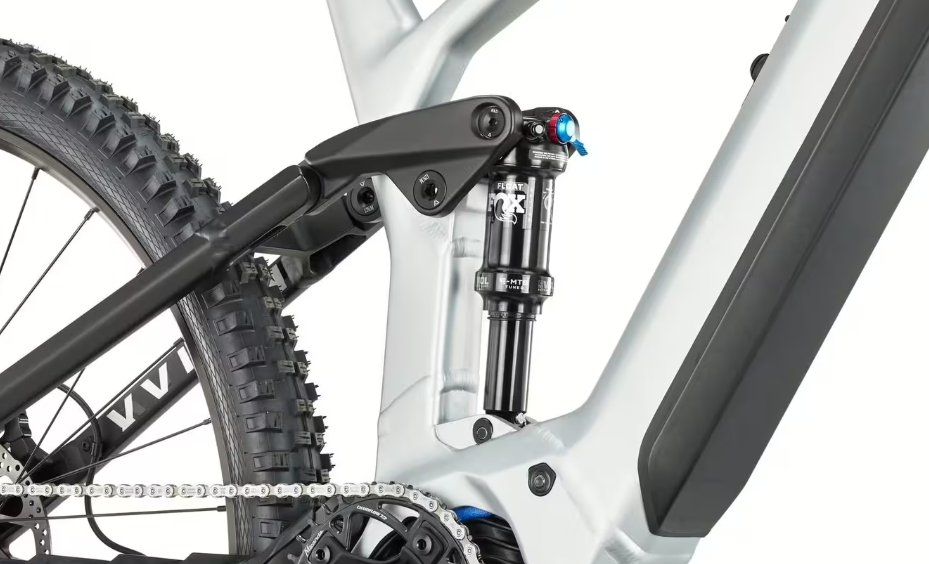

FOX "Float Rhythm", 185 mm x 52.5 mm |
|
Crank |
MIRANDA "Mythos", 165 mm, for Bosch Gen. 4, ISIS, Q:8, black, 34T e*thirteen "Helix Core e*spec" |
|
Chain |
SHIMANO "Deore CN-M6100" |
|
Bottom Bracket |
BOSCH |
|
Shifters |
SHIMANO "Deore SL-M6100" |
|
Rear Derailleur |
SHIMANO "Deore RD-M6100", long cage |
Components & Features
|
Specification |
Details |
|
Seating |
FIZIK "Terra Aidon X5", unisex, type 2, regular, L 255 x W 145 mm, black |
|
Fuel Type |
Electric (Lithium-Ion Battery) |
|
Wheels/Tyres |
29" SCHWALBE "Magic Mary" Performance Line (front, 62-622, Bikepark, Addix, TLE, 67 TPI, E-50), SCHWALBE "Big Betty" Performance Line (rear, 62-622, DD, Bikepark, Addix, TLE, 67 TPI, E-50), RODI "Ready 30" Rims, MACH 1 "PRO" Spokes, SHIMANO "Deore CS-M6100" 10-51T |
|
Wheel Size |
29" |
|
Brakes |
Hydraulic Disc Brakes, TEKTRO "HD-M535" (203 mm, front and rear, 4-piston, 6-hole, 2.3 mm thick) |
|
Brake Levers |
TEKTRO "HD-M535" |
|
Handlebar |
LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, backsweep 9°, rise 15 mm, black |
|
Stem |
LEVELNINE "Team A-Head", 1 1/8", 31.8 mm handlebar clamp, 40 mm long, black |
|
Grips |
SQLAB "70X", size M, 135 mm, black |
|
Headset |
ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock |
|
Saddle |
FIZIK "Terra Aidon X5", unisex, type 2, regular, L 255 x W 145 mm, black |
|
Seatpost |
LIMOTEC Variosattelstütze "D1", Ø 31.6 mm, 395 mm long, 125 mm adjustment range, black sandblasted |
|
Front Hub |
SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle |
|
Rear Hub |
SHIMANO "FH-TC500-HS-B", 12 x 148 mm Boost, Center Lock, 12-speed Micro Spline, 32 hole, Thru Axle, black |
|
Rims |
RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black |
|
Spokes |
MACH 1 "PRO" |
|
Exterior Features |
SRAM "UDH" Dropout for Thru Axle, 1 mm thread pitch, BOSCH "Mini Remote", BOSCH "Purion 200" Display, ABUS "XPlus" Battery Lock |
|
Weight |
26.60 kg |
